ADVENTURE WAITS AT THE NEXT CORNER

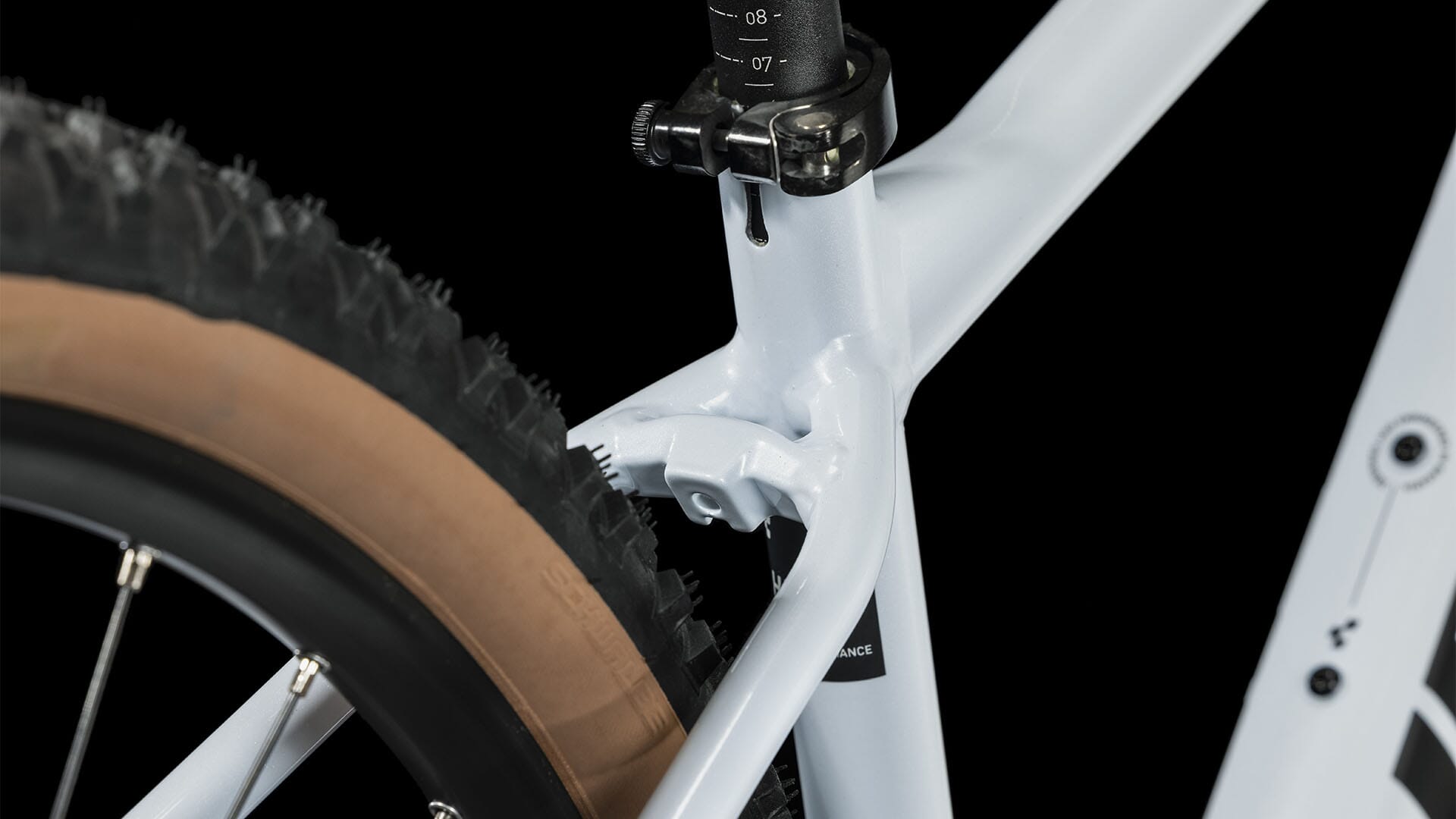

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

A LITTLE EXTRA ATTENTION TO DETAIL CAN GO A LONG WAY. WITH THE EXTRA CONTROL AND COMFORT OF A ROCKSHOX SUSPENSION FORK UP FRONT, THE AIM SLX GIVES YOU THE CONFIDENCE, COMFORT AND CONTROL YOU NEED TO EXPLORE JUST THAT LITTLE BIT FURTHER. GO ON... INDULGE YOUR ADVENTUROUS SIDE...

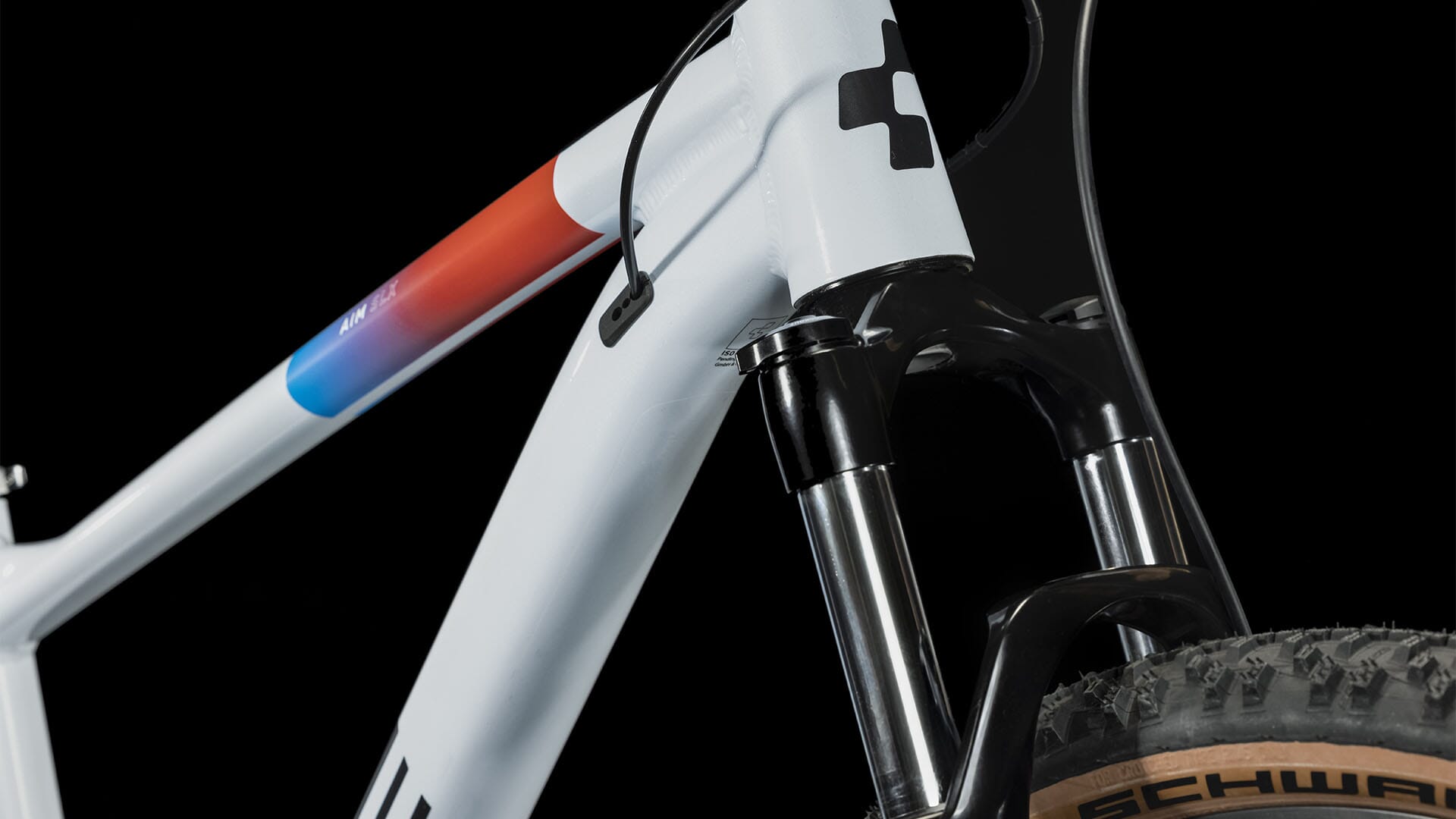

You know that saying, 'power is nothing without control?' Well, that's why we gave the Aim SLX 100mm of smooth, RockShox-flavoured bump-swallowing travel – with lockout. Combined with strong hydraulic disc brakes, tapered head tube and tenaciously grippy 2.25in tyres, it's the best way of ensuring you're always in full control, wherever your curiosity takes you. Wide-range 2x9 gears put the ideal ratio for any route at your fingertips, and the frame's even ready for a future dropper post upgrade. What's holding you back?

FRAME

·         FRAME

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

·         SIZE

Size L (20"), XL (22"), XXL (24")

SUSPENSION

·         SUSPENSION FORK

RockShox Judy Silver TK Coil, 100mm, Lockout

DRIVETRAIN & BRAKES

·         BRAKE SYSTEM

Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

·         REAR DERAILLEUR

Shimano RD-M3100-SGS, 9-Speed

·         FRONT DERAILLEUR

Shimano FD-M2020, Top Swing, 31.8mm Clamp

·         SHIFTERS

Shimano SL-M2010-9R, Rapidfire-Plus

·         BOTTOM BRACKET

Thun Paso-ML, 73mm BSA

·         CRANKSET

Shimano FC-MT101, 36x22T

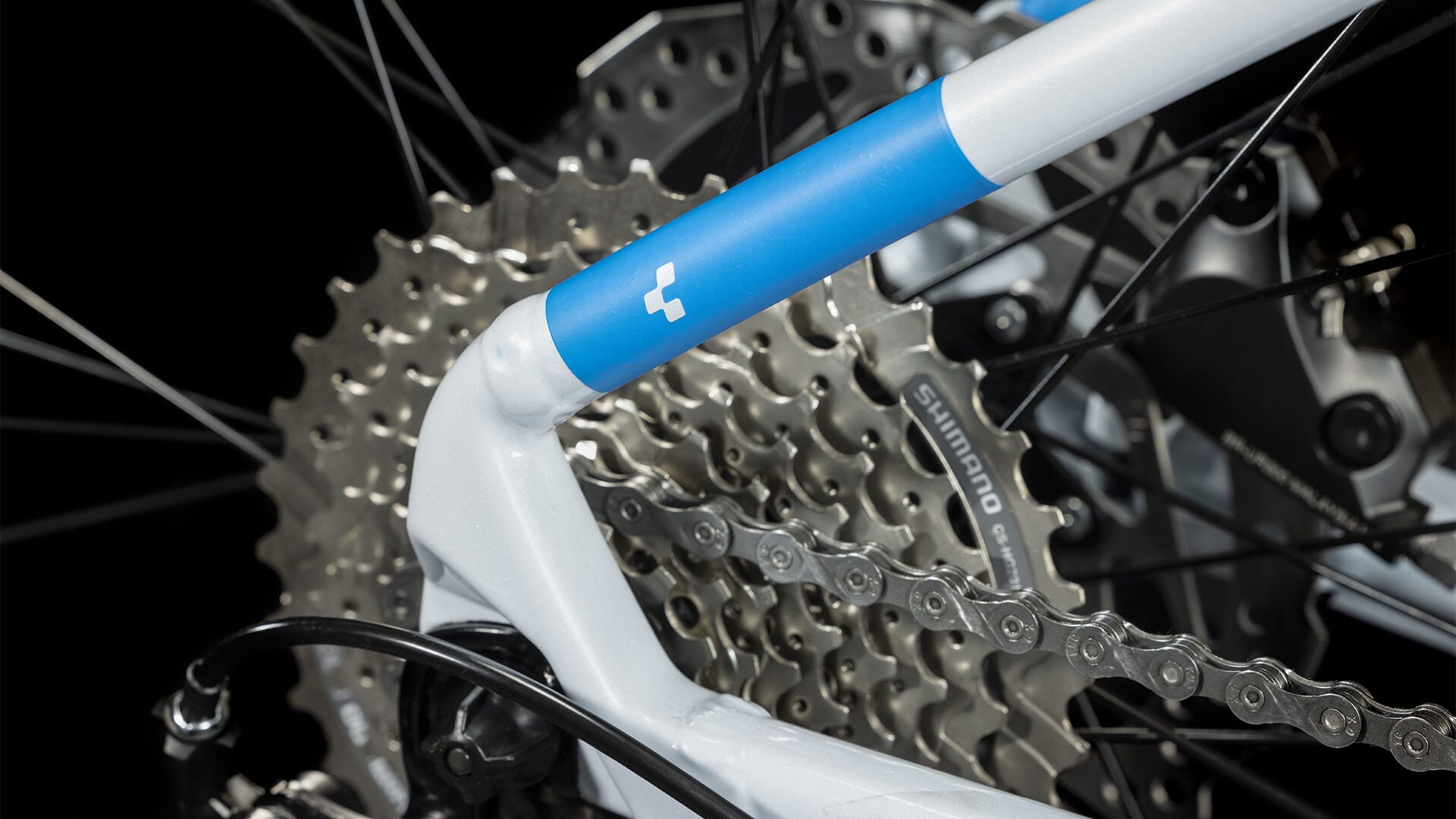

·         CASSETTE

Shimano CS-HG201, 11-36T

·         CHAIN

KMC X9

COCKPIT

·         HANDLEBAR

CUBE Rise Trail Bar, 680mm

·         STEM

CUBE Performance Stem Race, 31.8mm

·         GRIPS

ACID React

·         HEADSET

CUBE FPH868, Semi-Integrated

WHEELS

·         FRONT HUB

Shimano HB-TX505, QR, Centerlock

·         REAR HUB

Shimano FH-TX505, QR, Centerlock

·         RIMS

CUBE ZX20, 32H, Disc

·         TYRES

Schwalbe Smart Sam, Active, 2.25

FINISHING KIT

·         SEAT POST

CUBE Performance Post, 27.2mm

·         SADDLE

Natural Fit Venec Lite

·         PEDALS

ACID PP MTB

PRODUCT INFORMATION

·         WEIGHT

13,8 kg

·         COLOUR

white´n´blue´n´red
