ENJOY

THE RIDE

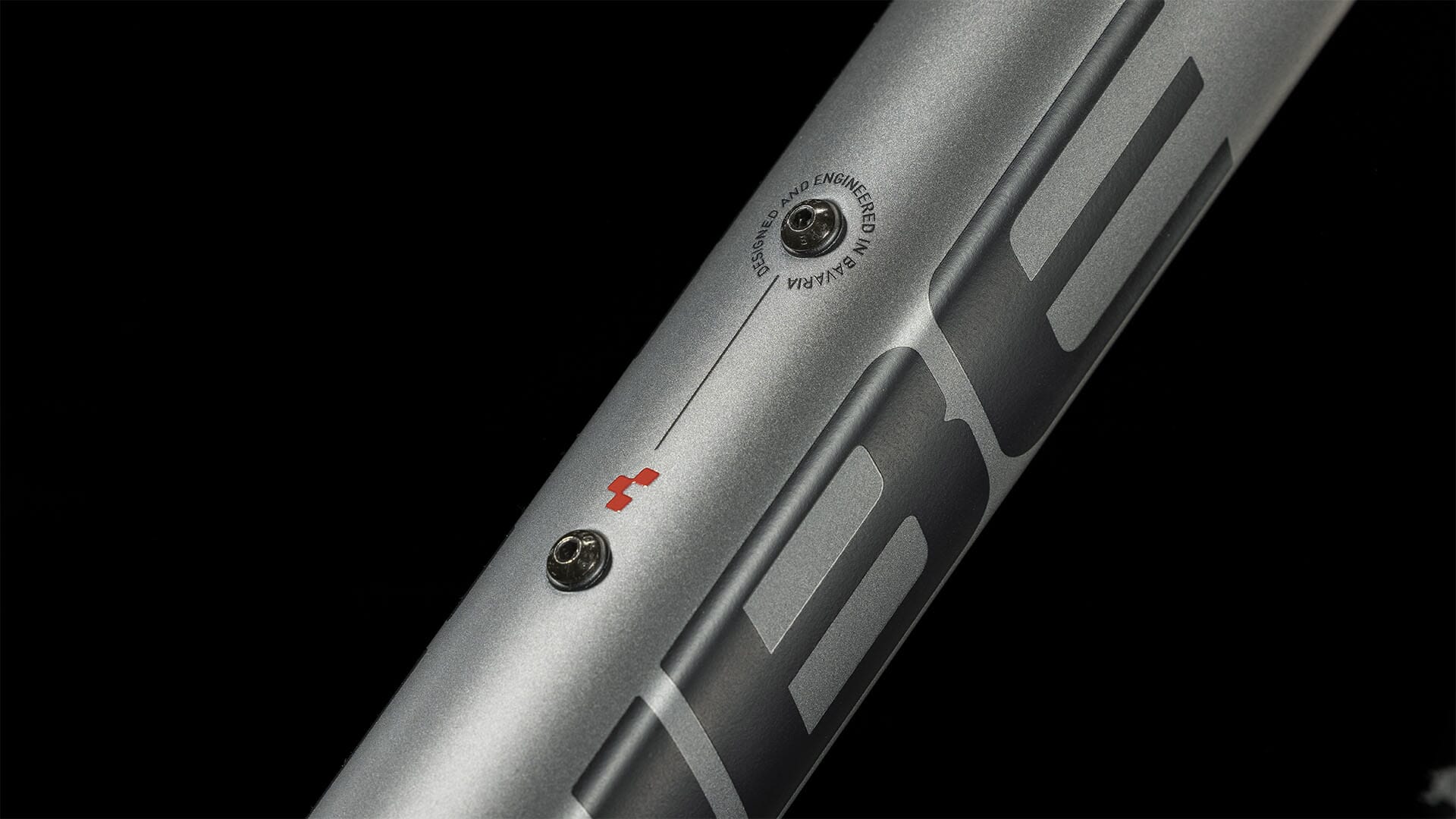

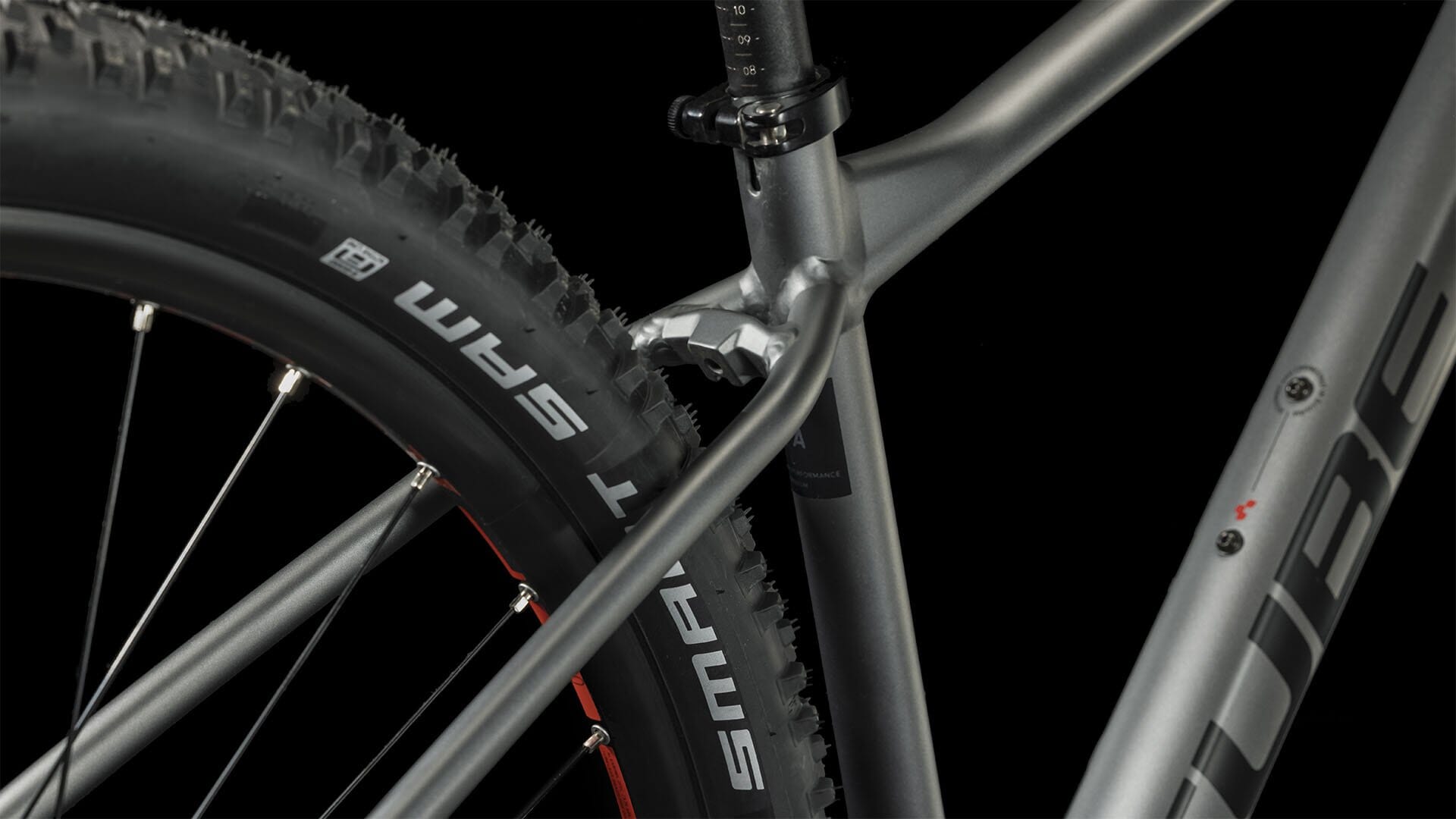

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for Acid mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Less can sometimes be more. With Shimano's legendarily reliable 2x10 gear system, you get a huge range alongside ease of use and incredible versatility. For the Aim EX, it's the perfect match for our sleek, adaptable, go-anywhere bike. Work or play, town or country, plains or mountains... it's all yours for the taking.

When the off-road bug bites, you'll want a bike that won't let you down. That's why, for the Aim EX, we selected Shimano's easy-to-use and superbly reliable 2x10 gears. Paired with the bump-swallowing ability of a 100mm suspension fork – with remote lockout – and tenaciously grippy 2.25in tyres, it's your guarantee of always having the right gear for any eventuality at your fingertips. Strong hydraulic disc brakes, our versatile SizeSplit system and a dropper post-ready frame are the icing on the cake. Where will it take you next?

FRAME

·         FRAME

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

·         SIZE

Size Split: 27.5: XS, S // 29: M, L, XL, XXL

SUSPENSION

·         SUSPENSION FORK

SR Suntour XCM Disc, 100mm, Remote Lockout

DRIVETRAIN & BRAKES

·         BRAKE SYSTEM

Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

·         REAR DERAILLEUR

Shimano Deore RD-M5120-SGS, 10-Speed

·         SHIFTERS

Shimano Deore SL-M5100, Rapidfire-Plus

·         FRONT DERAILLEUR

Shimano Deore FD-M6025-H, Downswing, 31.8mm Clamp

·         BOTTOM BRACKET

Samox BB-EB2401, 73mm BSA

·         CRANKSET

Shimano Deore FC-M4100, 36X26T

·         CASSETTE

Sunrace CSM52, 11-42T

·         CHAIN

KMC X10

COCKPIT

·         HEADSET

CUBE FPH868, Semi-Integrated

·         STEM

CUBE Performance Stem Race, 31.8mm

·         HANDLEBAR

CUBE Rise Trail Bar, 680mm

·         GRIPS

ACID React

WHEELS

·         RIMS

CUBE ZX20, 32H, Disc

·         FRONT HUB

Shimano HB-TX505, QR, Centerlock

·         REAR HUB

Shimano FH-TX505, QR, Centerlock

·         TYRES

Schwalbe Smart Sam, Active, 2.25

FINISHING KIT

·         SADDLE

Natural Fit Venec Lite

·         SEAT POST

CUBE Performance Post, 27.2mm

·         PEDALS

ACID PP MTB

PRODUCT INFORMATION

·         COLOUR

grey´n´red

·         WEIGHT

14,3 kg
