ENJOY

THE RIDE

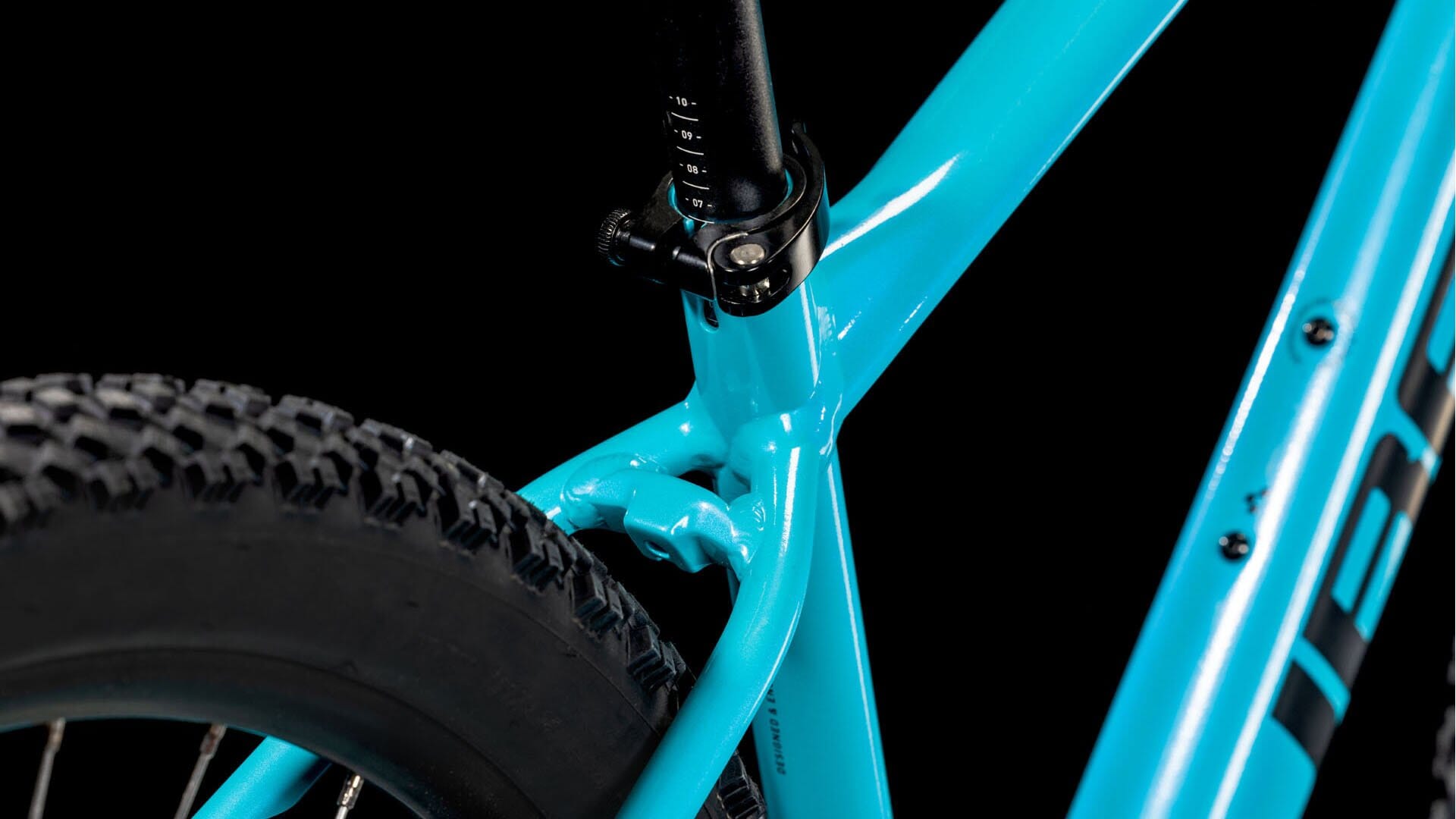

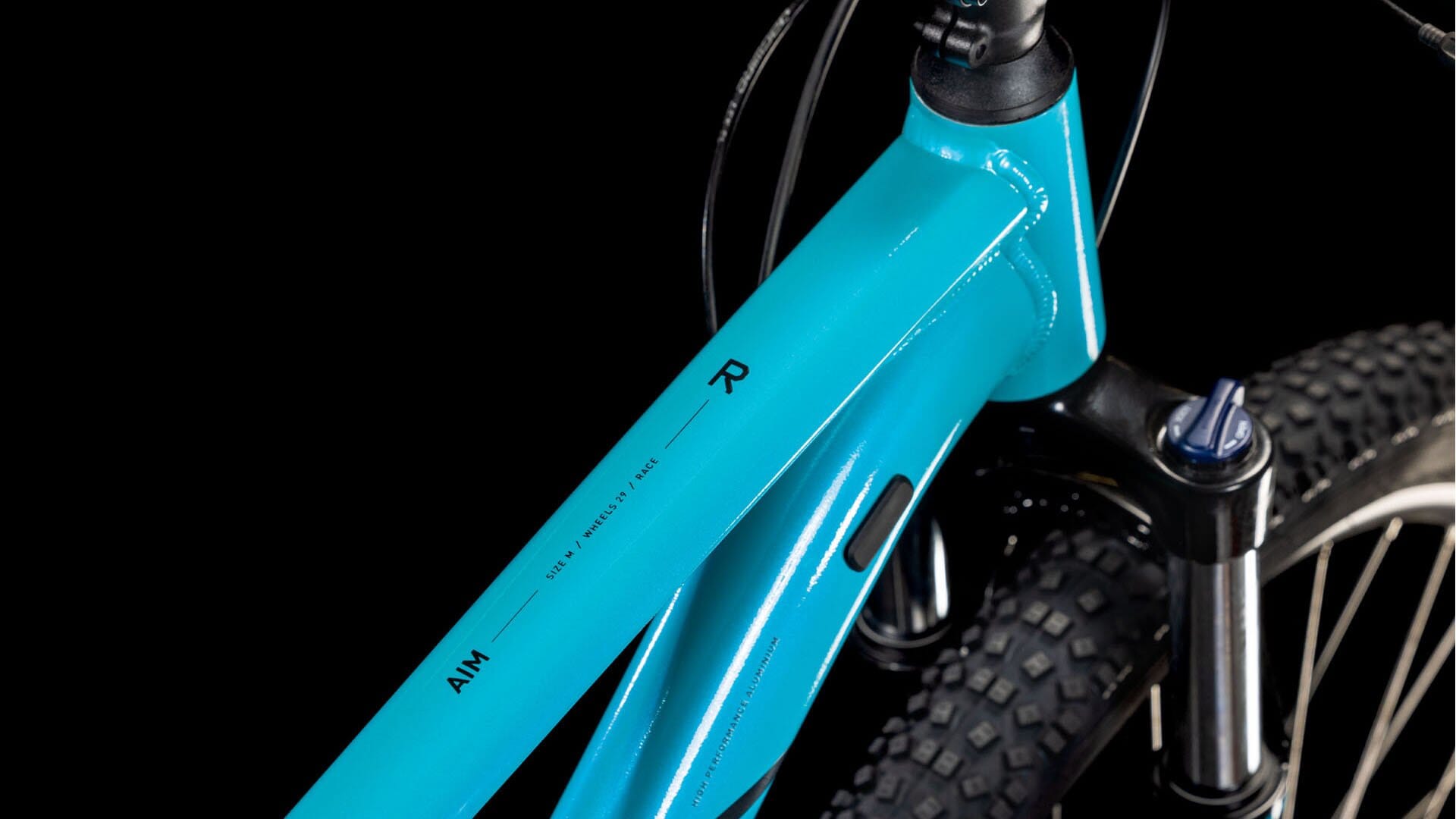

Beauty is more than skin deep: the Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Carefully thought out geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres. Our Size Split system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

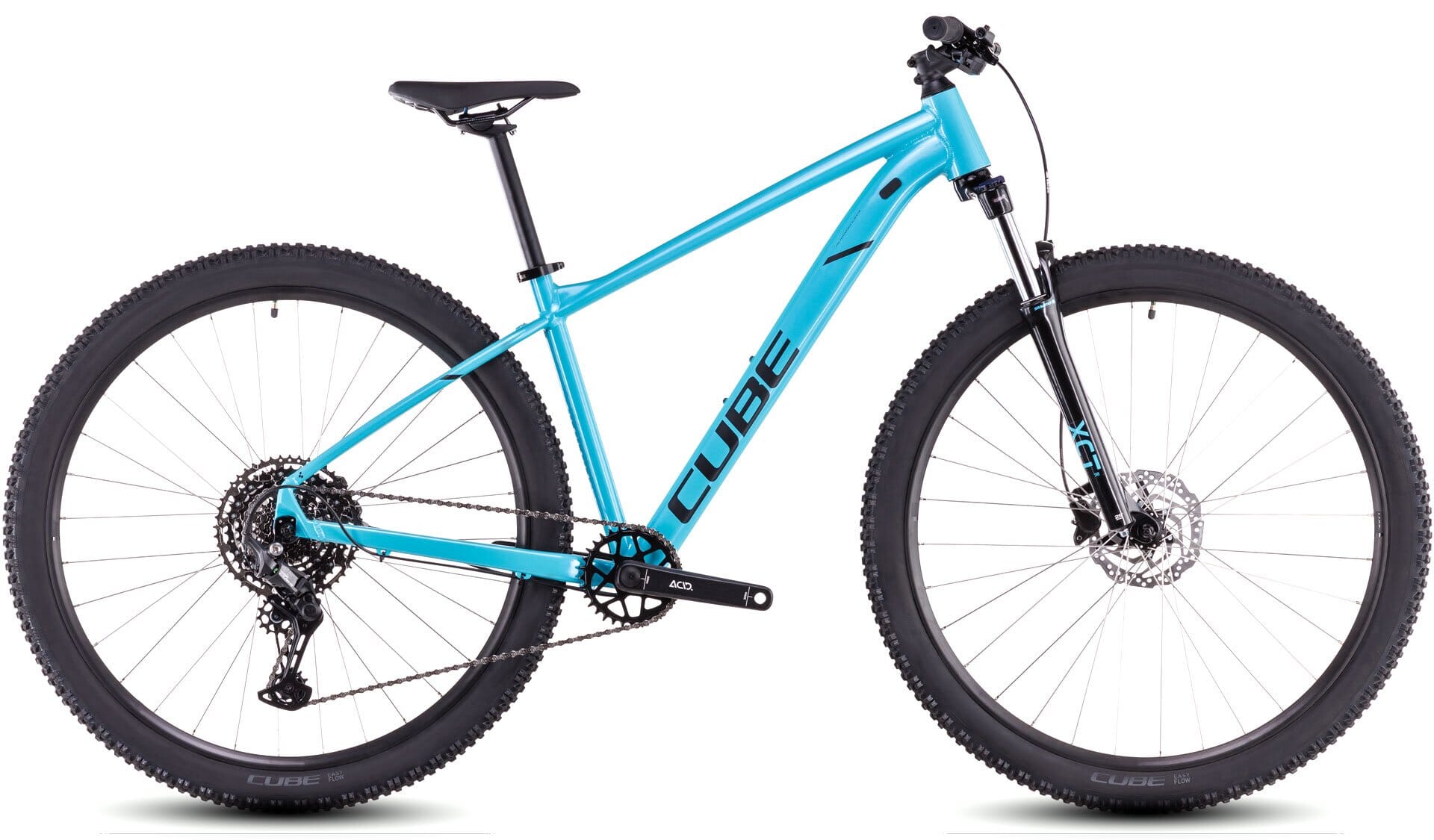

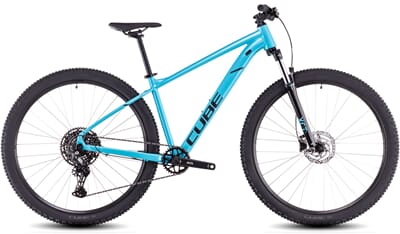

The Aim Race is the adaptable bike you never knew you needed, but will wonder how you managed without. From the lockout-equipped suspension fork to powerful disc brakes, it's got your back on any ride from the weekday commute to weekend forays into the great outdoors.

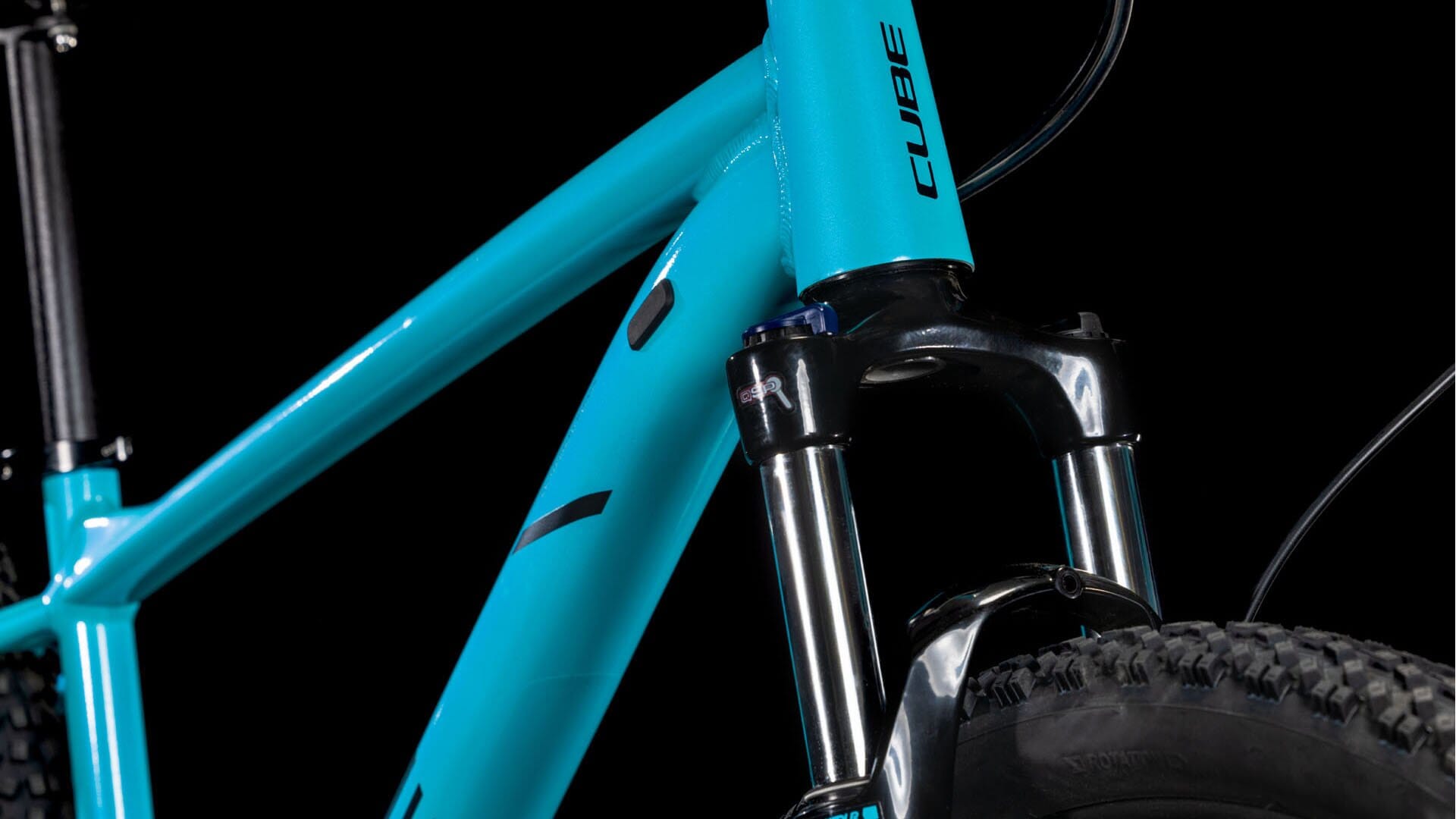

The devil is in the details. At CUBE we know that only too well, which is why the Aim Race's 100mm suspension fork features a lockout – so you can reduce bob and bounce when you're riding hard. With grippy tyres, powerful Shimano hydraulic disc brakes and the wide range of Shimano's Cues 10-speed gears, you've all you need to build your own adventure. And, with Size Split, there's an Aim Race that'll fit you perfectly.

FRAME

·         FRAME

Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount

·         SIZE

Size Split: 27.5: XS, S // 29: M, L, XL, XXL

SUSPENSION

·         SUSPENSION FORK

SR Suntour XCT Disc, 100mm, Lockout

DRIVETRAIN & BRAKES

·         BRAKE SYSTEM

Shimano BR-MT200/UR300, Hydr, Disc Brake, PM/FM (160/160)

·         REAR DERAILLEUR

Shimano Cues RD-U6000-GS, 10-Speed

·         SHIFTERS

Shimano Cues SL-U6000, Rapidfire-Plus

·         BOTTOM BRACKET

Thun Paso-ML, 73mm BSA

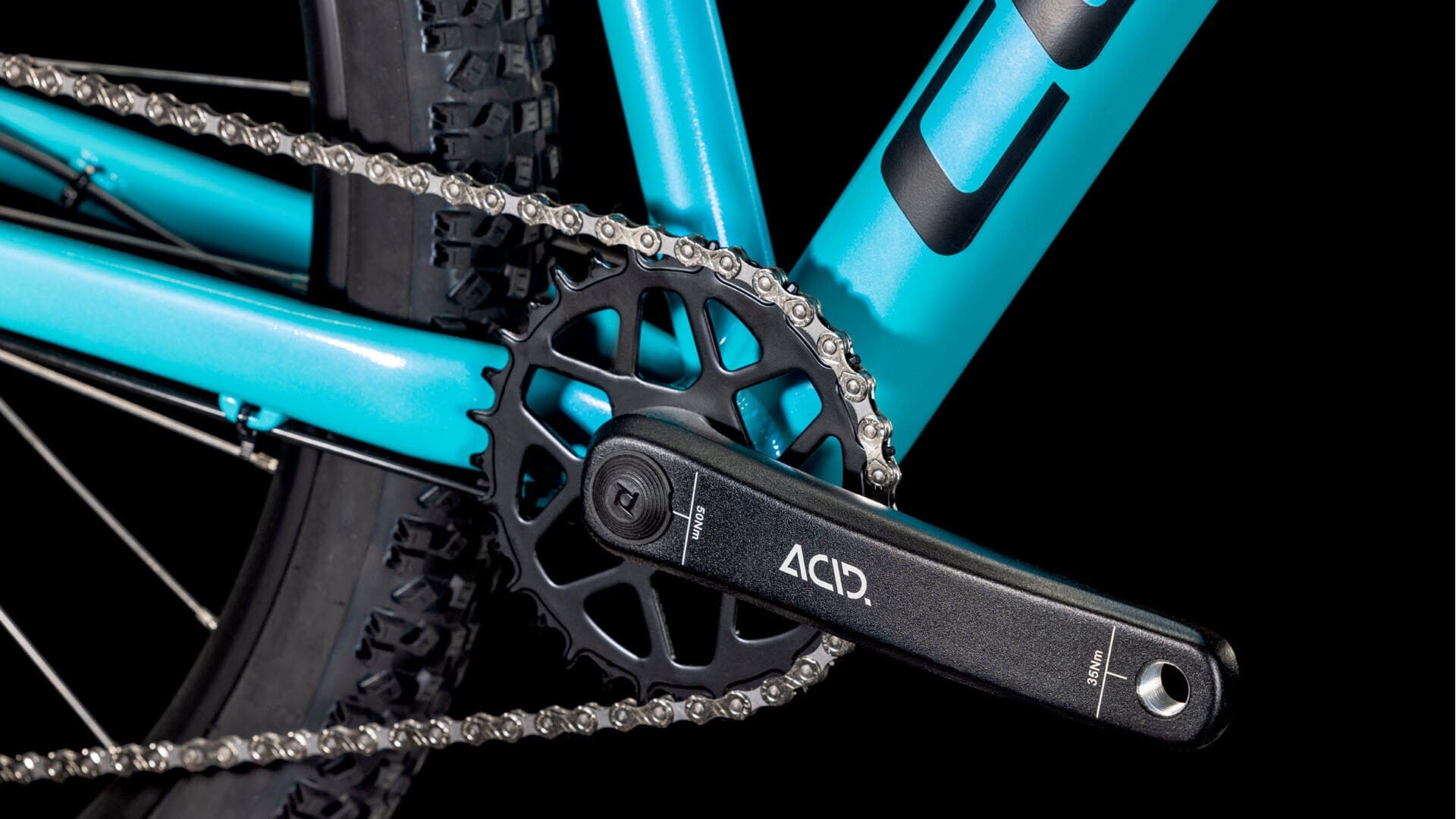

·         CRANKSET

ACID, 32T, 170mm

·         CASSETTE

Shimano Cues CS-LG400, 11-48T

·         CHAIN

KMC eGlide

COCKPIT

·         HEADSET

CUBE FPH868p, Tapered, Semi-Integrated

·         STEM

CUBE Performance Stem, 31.8mm

·         HANDLEBAR

CUBE Rise Trail Bar, 680mm

·         GRIPS

ACID React

WHEELS

·         RIMS

CUBE EX25, 32H, Disc, Tubeless Ready

·         FRONT HUB

Shimano HB-QC300, QR, Centerlock

·         REAR HUB

Shimano FH-QC300-HM, QR, Centerlock

·         TYRES

CUBE MTB, 2.25

FINISHING KIT

·         SADDLE

ACID Venec Lite

·         SEAT POST

CUBE Performance Post, 27.2mm

·         PEDALS

CUBE PP MTB

PRODUCT INFORMATION

·         COLOUR

swimmingpool´n´black

·         WEIGHT

14,5 kg
