RECLAIM

THE CITY

STREETS

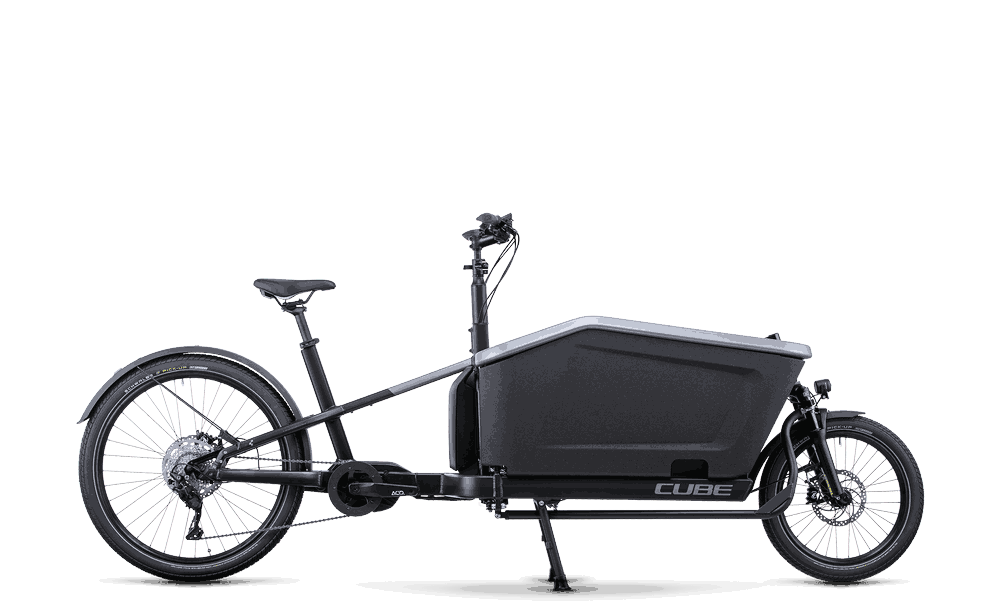

Most bikes are designed to carry a person and, perhaps, a little luggage. The Cargo Hybrid is a different beast, built with a maximum system weight of 220kg – which means it's capable of carrying bulky loads, or even two children with the optional seat, in safety and comfort. Handling is stable and confidence-inspiring even when fully loaded, so navigating city streets is a breeze. We positioned the powerful, cargo-specific Bosch drive unit unobtrusively at the base of the seat tube, and there's room for up to two batteries close to the bike's centre of gravity.

WANT MORE FLEXIBILITY AND MORE RANGE? THE CARGO SPORT DUAL HYBRID'S BOSCH POWER, DUAL BATTERIES AND WIDE-RANGE SHIMANO GEARS WILL GET YOU WHEREVER YOU NEED TO BE – AND THE CLEVER CARGO BOX WILL SWALLOW MOST LOADS WITH EASE. FOR BUSINESS, FOR FAMILY OR FOR FUN... IT'S GOT IT ALL COVERED.

The flexible ONE SIZE CONCEPT makes one bike so versatile that it can be used by any number of people – irrespective of their height. Everyone can enjoy a comfortable ride courtesy of the upright riding position and step-through frame. The saddle and stem easily adjust up or down to suit any rider from around 5ft 2in to 6ft 2in (1.60m to 1.90m). The ONE SIZE CONCEPT is a universal platform that's ideal to share between the whole family, partners, friends, neighbours and colleagues alike. Or keep it for yourself as the perfect companion for wherever life takes you. One bike, flexible for all!

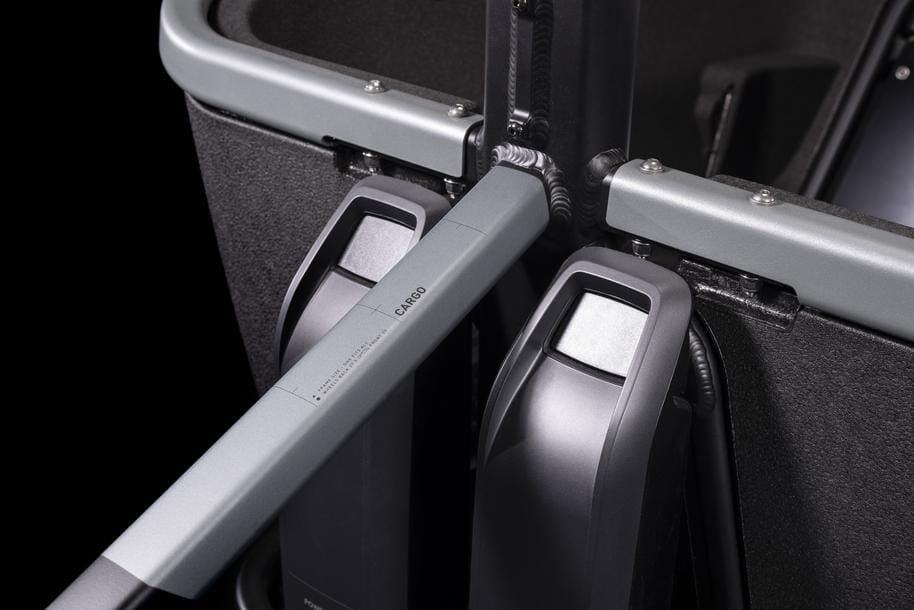

With clever design and the smooth power of Bosch's fourth-generation Cargo Line drive system, the Cargo Sport Dual Hybrid rewrites the bicycle rule book – and, with two 500Wh batteries for a total of 1000Wh of power, it's got the best possible range. Want to carry your kids in safety and comfort? Simply add the optional child seat with integrated seat belts. Weather not looking so great? Clip on the optional rain cover to help keep your cargo – or your kids – dry. Need to carry more? Add the optional rear carrier. We've got it all covered. Bright LED lights front and rear ensure you can see and be seen, mudguards and grippy tyres make light work of wet streets, and powerful Magura hydraulic disc brakes ensure you're always in control, whatever the weather. Add the smooth reliability and wide range of Shimano's 10-speed Deore gears and the comfort of a suspension fork, and it's easy to see why more people are choosing to ditch the car.

FRAME

·         SIZE

One Size

SUSPENSION

·         SUSPENSION FORK

SR Suntour MOBIE CARGO, 80mm

E-BIKE SYSTEM

·         DRIVE UNIT

Bosch Drive Unit Cargo Line Generation 4 (85Nm) Cruise (250Watt)

·         BATTERY

Bosch DualBattery 1000

·         DISPLAY

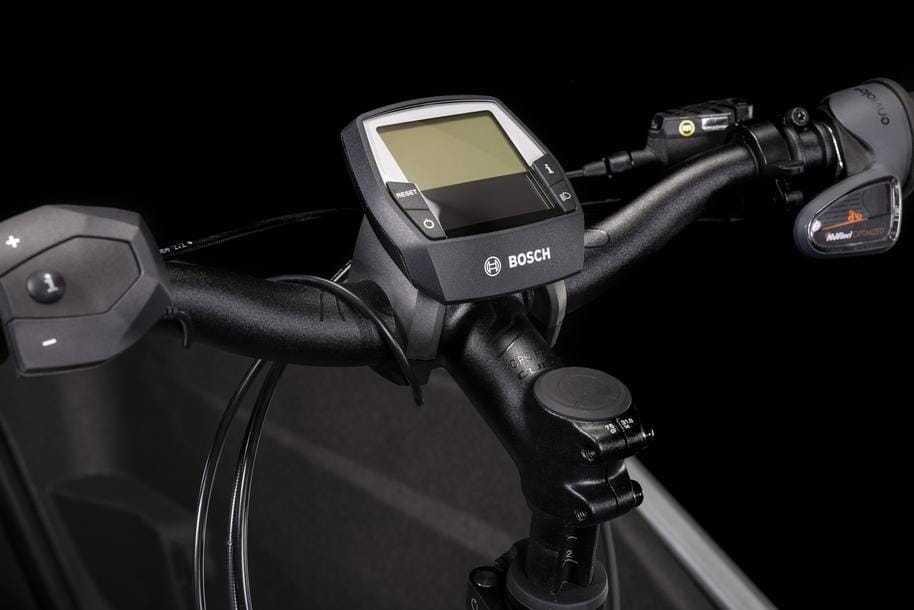

Bosch Intuvia

·         CHARGER

Bosch 4A

DRIVETRAIN & BRAKES

·         BRAKE SYSTEM

Magura CMe, Hydr. Disc Brake (180/203)

·         REAR DERAILLEUR

Shimano Deore RD-M5120-SGS, 10-speed

·         SHIFTERS

Shimano Deore SL-M4100

·         CRANKSET

ACID E-Crank, 170mm, 38T

·         CASSETTE

Shimano Deore CS-M4100, 11-46T

·         CHAIN

KMC X10

COCKPIT

·         HEADSET

Cube H835D3, semi-integrated with sealed bearings and Cane Creek Viscoset

·         STEM

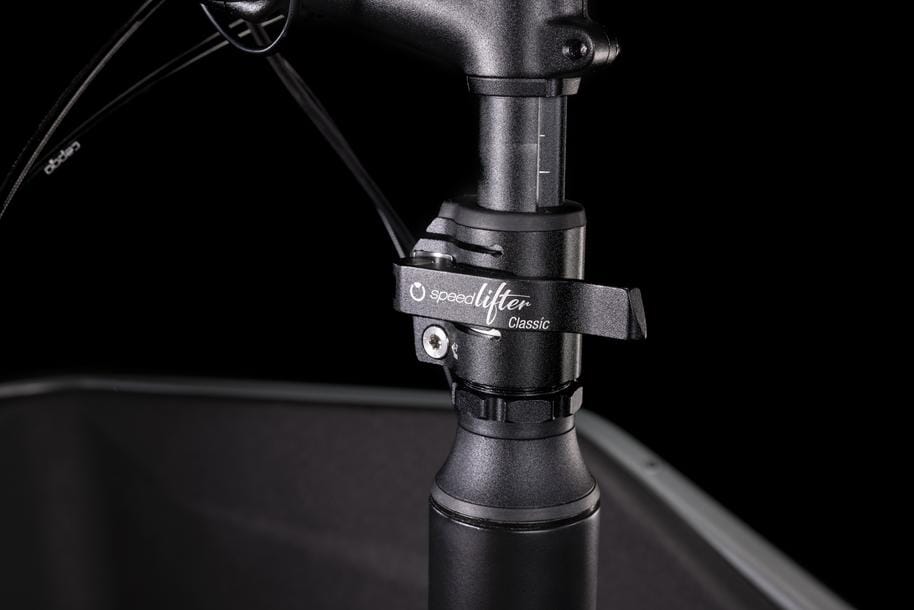

BySchulz Speedlifter Classic

·         HANDLEBAR

CUBE Comfort Trail Bar, 680mm

·         GRIPS

ACID Travel Comfort

WHEELS

·         RIMS

CUBE EX30, 32H, Disc, Tubeless Ready

·         FRONT HUB

Shimano HB-MT400, 15x100mm , Centerlock

·         REAR HUB

Shimano Deore FH-M6000, QR, Centerlock

·         FRONT TYRE

Schwalbe Pick-Up, Super Defense, 60-406

·         REAR TYRE

Schwalbe Pick-Up, Super Defense, 65-584

FINISHING KIT

·         SADDLE

Natural Fit Sequence Comfort

·         SEAT POST

Newmen Evolution, 30.9mm

·         PEDALS

CUBE PP MTB

·         FRONT LIGHT

ACID Front Light PRO-E 110, 5-16V, DC

·         REAR LIGHT

ACID Mudguard Rear Light PRO-E, 12V, DC

·         KICKSTAND

Cargo Kickstand

·         MUDGUARDS

ACID 75

·         BELL

Humpert

PRODUCT INFORMATION

·         COLOUR

flashgrey´n´black

·         WEIGHT

49,5 kg
