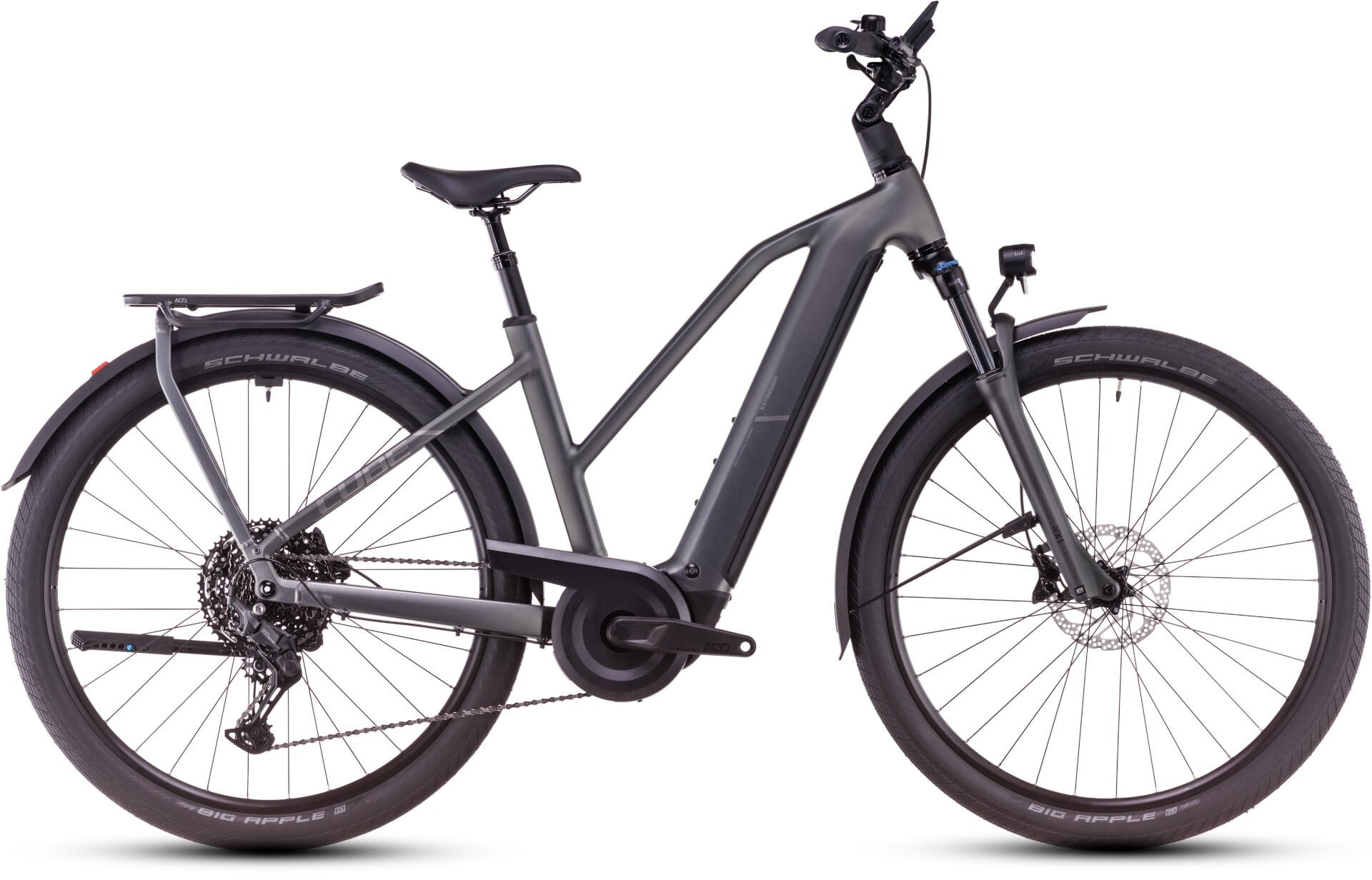

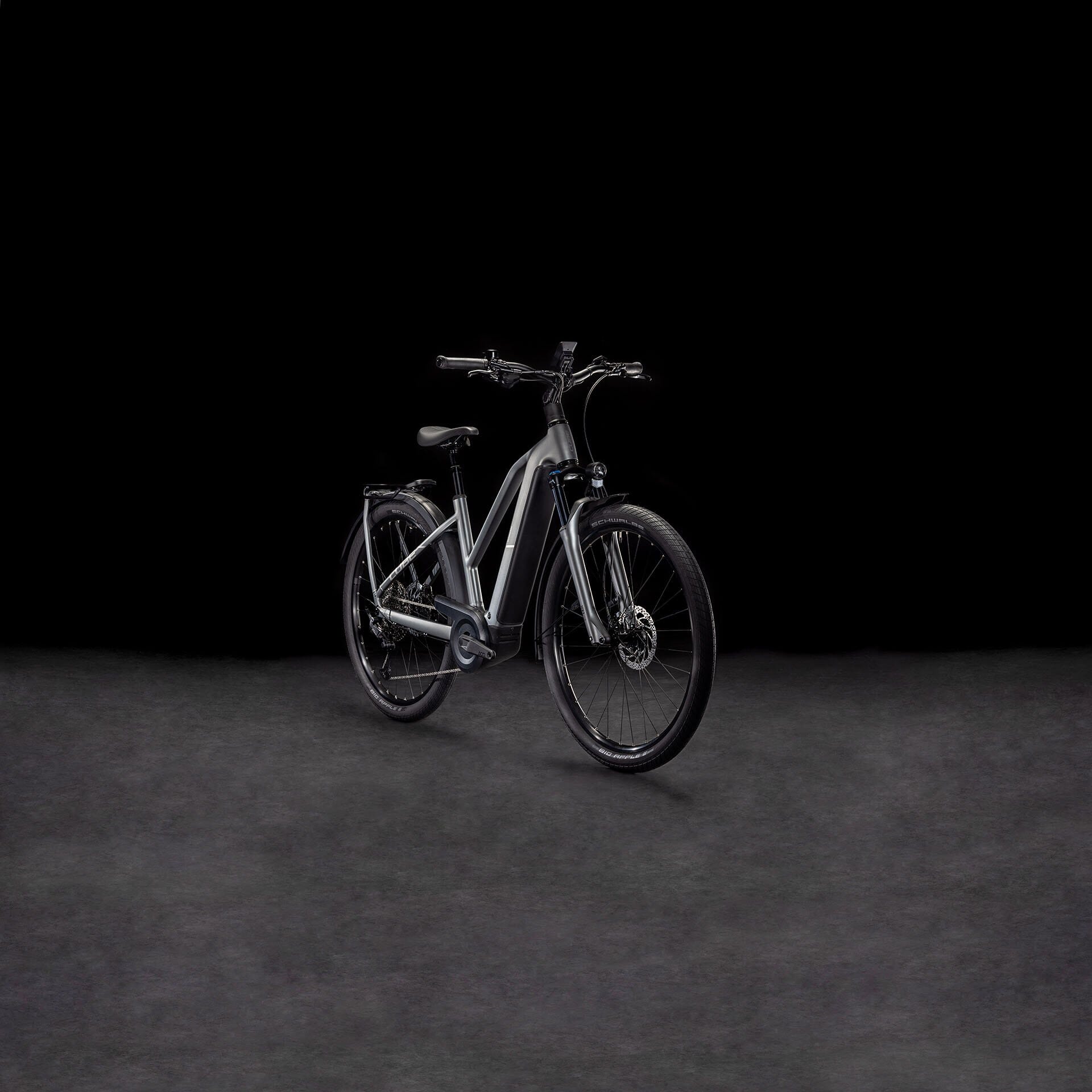

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

A CUBE hybrid is your passport to freedom. With its powerful Bosch CX drive and stunning CUBE design, the Kathmandu Hybrid Pro has everything you need to explore further. Comfortable and endlessly versatile, it's all you need to expand your horizons.

The Kathmandu Hybrid Pro by CUBE is all about the freedom of two-wheeled exploration, with a handy Bosch power boost. You can't miss the elegant lines of the Integrated Carrier 3.0, which provides a sturdy base for carrying whatever you need. The Bosch CX drive and PowerTube battery, meanwhile, are so neatly incorporated into the frame's design, you'll barely notice them until you start turning the pedals. At which point, the wide range and precise shifting of Shimano's Cues 1x11 gears are bound to come in handy, as is the smooth strength of the 4-piston Shimano hydraulic disc brakes when you need to slow down. With a full complement of included accessories, the only remaining question is where you'll be headed next...

FRAME

·         FRAME

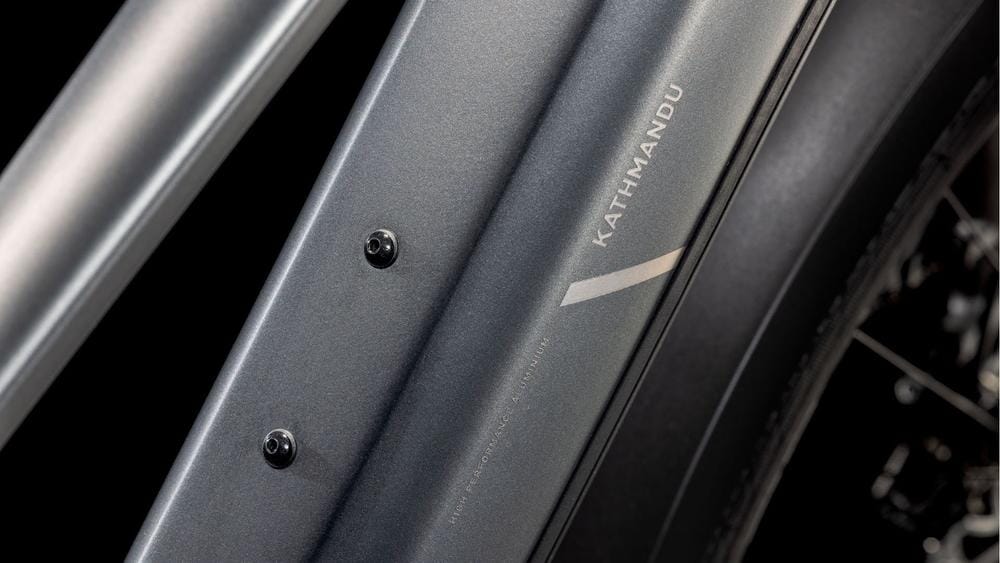

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube

·         SIZE

Trapeze: 46cm, 50cm, 54cm, 58cm

SUSPENSION

·         SUSPENSION FORK

SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm

E-BIKE SYSTEM

·         DRIVE UNIT

Bosch Drive Unit Performance Line CX, Smart System

·         REMOTE

Bosch LED Remote

·         BATTERY

Bosch PowerTube 800wh

·         DISPLAY

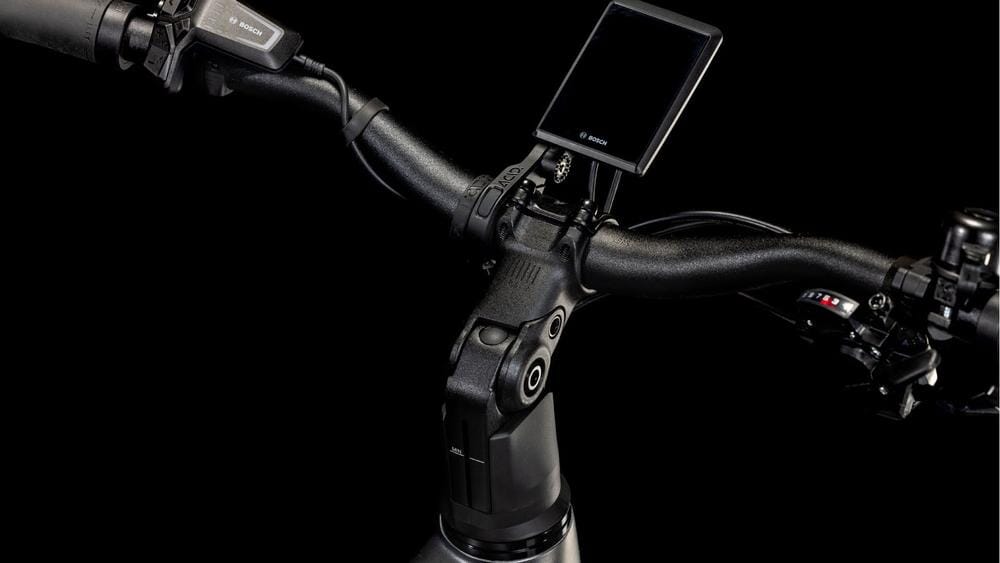

Bosch Kiox 500

·         CHARGER

Bosch 2A

DRIVETRAIN & BRAKES

·         BRAKE SYSTEM

Shimano BR-MT420, Hydr. Disc Brake (180/180)

·         REAR DERAILLEUR

Shimano Cues RD-U6000-GS, 11-Speed

·         SHIFTERS

Shimano Cues SL-U6000, Rapidfire-Plus

·         CRANKSET

ACID MTB Hybrid Pro

·         CASSETTE

Shimano Cues CS-LG400, 11-50T

·         CHAIN

KMC eGlide

COCKPIT

·         HEADSET

ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

·         STEM

CUBE Comfort Stem Pro, 31.8mm, Adjustable

·         HANDLEBAR

CUBE Comfort Trail Bar, 700mm

·         GRIPS

ACID Travel Comfort

WHEELS

·         RIMS

CUBE EX25, 32H, Disc, Tubeless Ready

·         FRONT HUB

CUBE Engineered By Newmen, 15mm, Boost, Centerlock

·         REAR HUB

CUBE Engineered By Newmen, 12mm, Boost, Centerlock

·         TYRES

Schwalbe Big Apple, Active, 55-622

FINISHING KIT

·         SADDLE

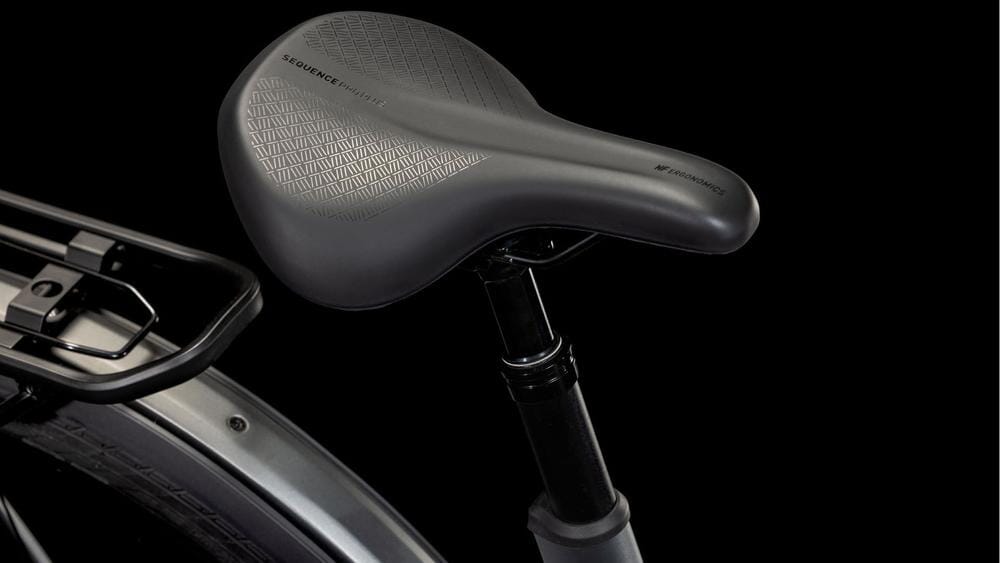

ACID Sequence Pro Plus

·         SEAT POST

CUBE Suspension Seatpost HD, 31.6mm

·         PEDALS

ACID PP MTB

·         FRONT LIGHT

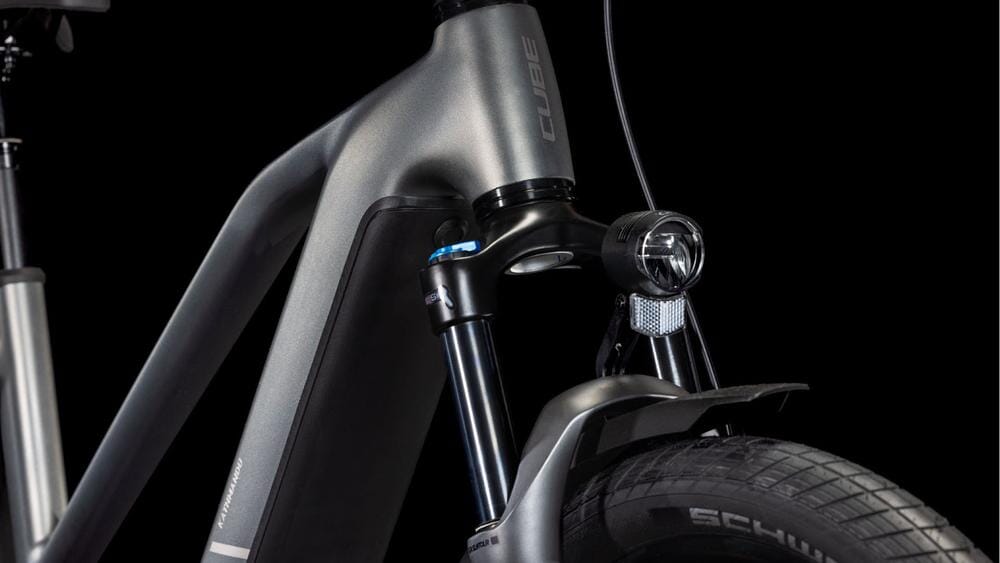

ACID Front Light PRO-E 60 X-Connect, 12V, DC

·         REAR LIGHT

ACID Mudguard Rear Light PRO-E, 12V, DC

·         KICKSTAND

ACID FM Pure Kickstand

·         MUDGUARDS

ACID 65 Integrated Carrier 3.0

·         BELL

Easy Bell

·         CARRIER

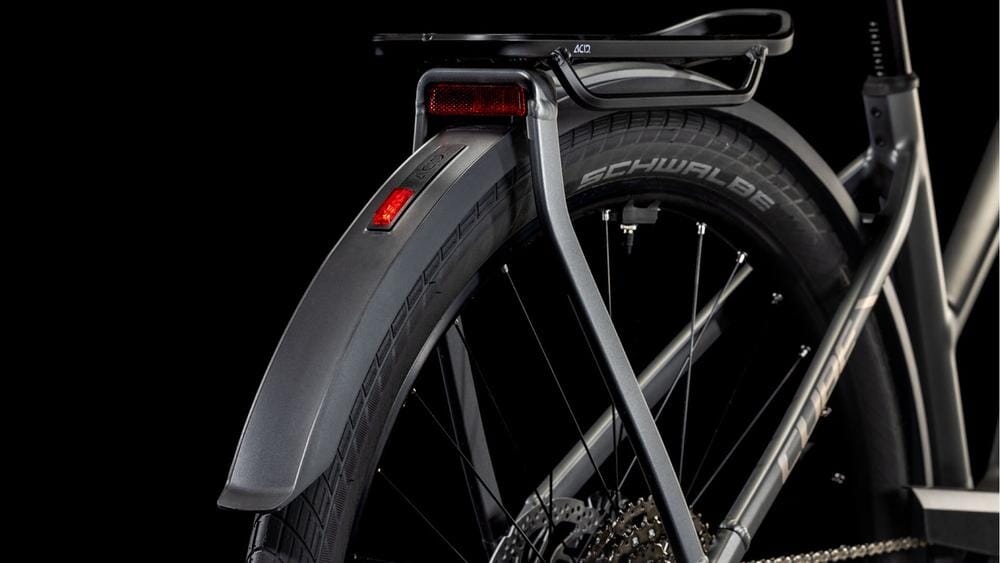

ACID Integrated Carrier 3.0, CUBE Adapter Compatible

PRODUCT INFORMATION

·         COLOUR

slabgrey´n´chrome

·         WEIGHT

27,6 kg
