CREATING

MEMORIES

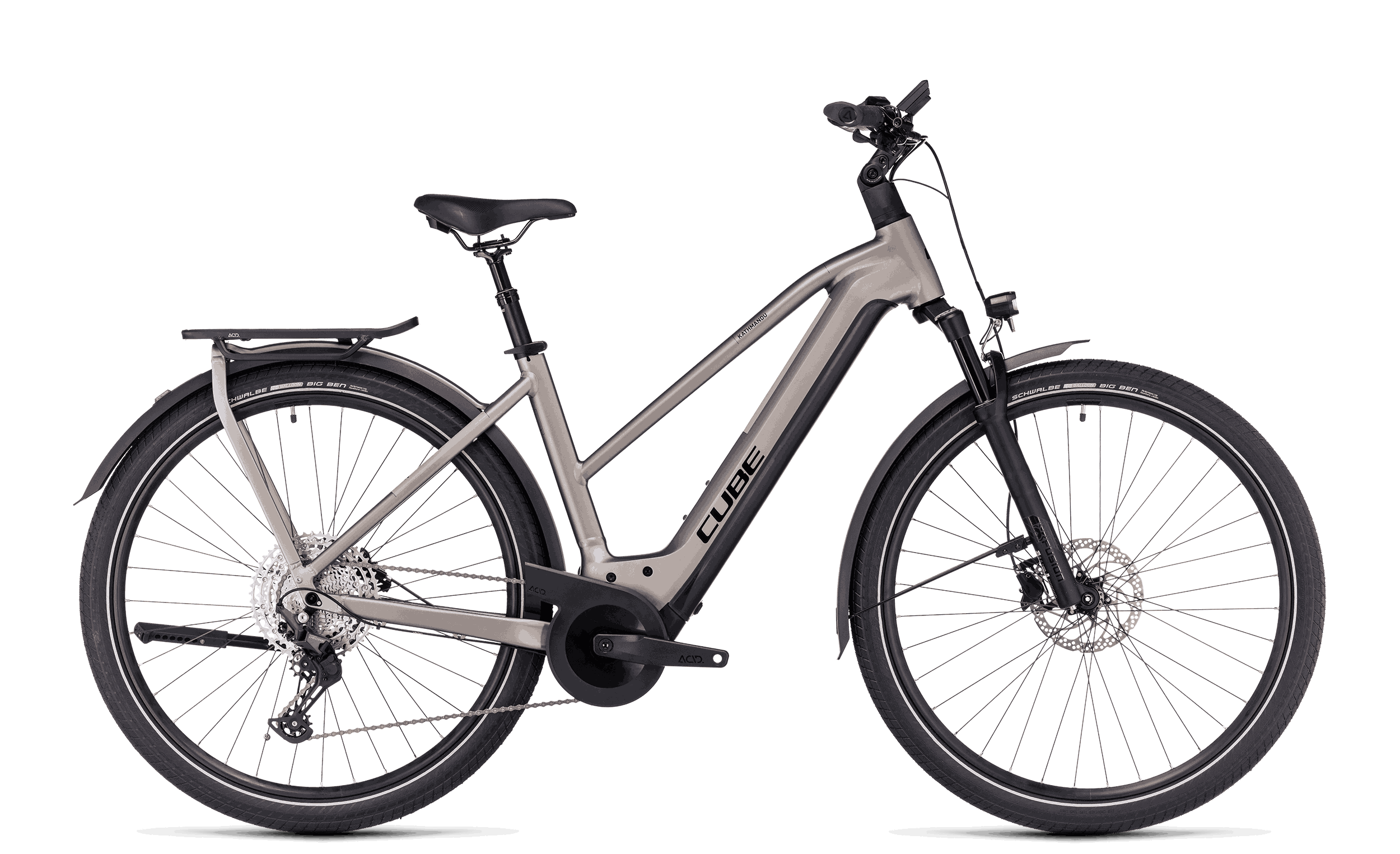

The Kathmandu Hybrid Pro is all about the freedom of two-wheeled exploration... with a handy Bosch power boost. Comfortable, versatile and adaptable, its fourth-generation Bosch CX drive system with new Kiox display and high-capacity battery is just the beginning. We chose an X-Fusion air suspension fork with lockout for its ease of adjustment, then added a suspension seatpost and an adjustable stem – so you'll be more comfortable, even on longer rides and rougher roads. Shimano's Deore 1x11 gears with durable KMC X11 chain provide a huge range and easy, fingertip shifting. And the full complement of included accessories and Integrated Carrier 3.0 mean you're set up to take any journey in your stride.

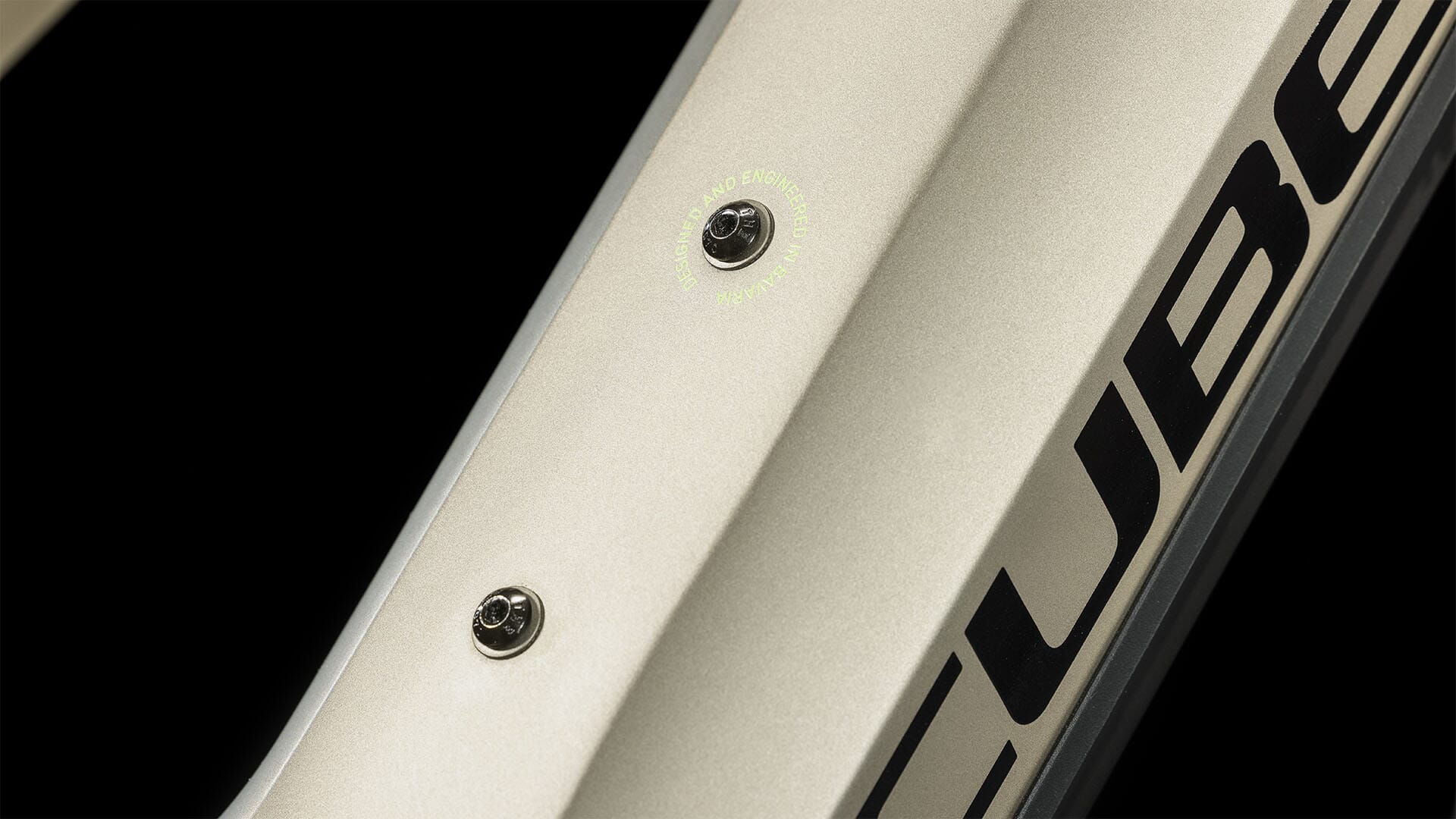

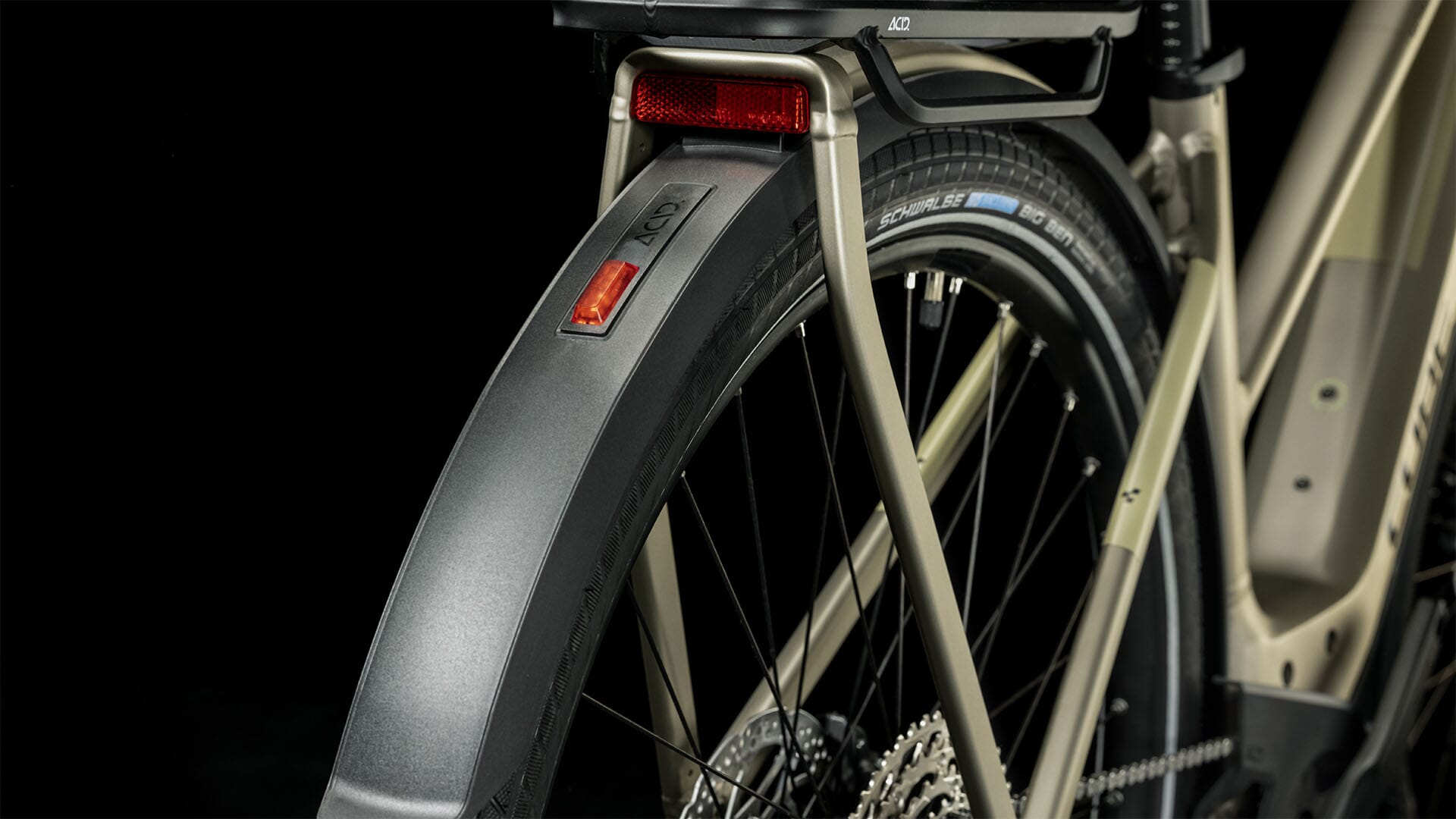

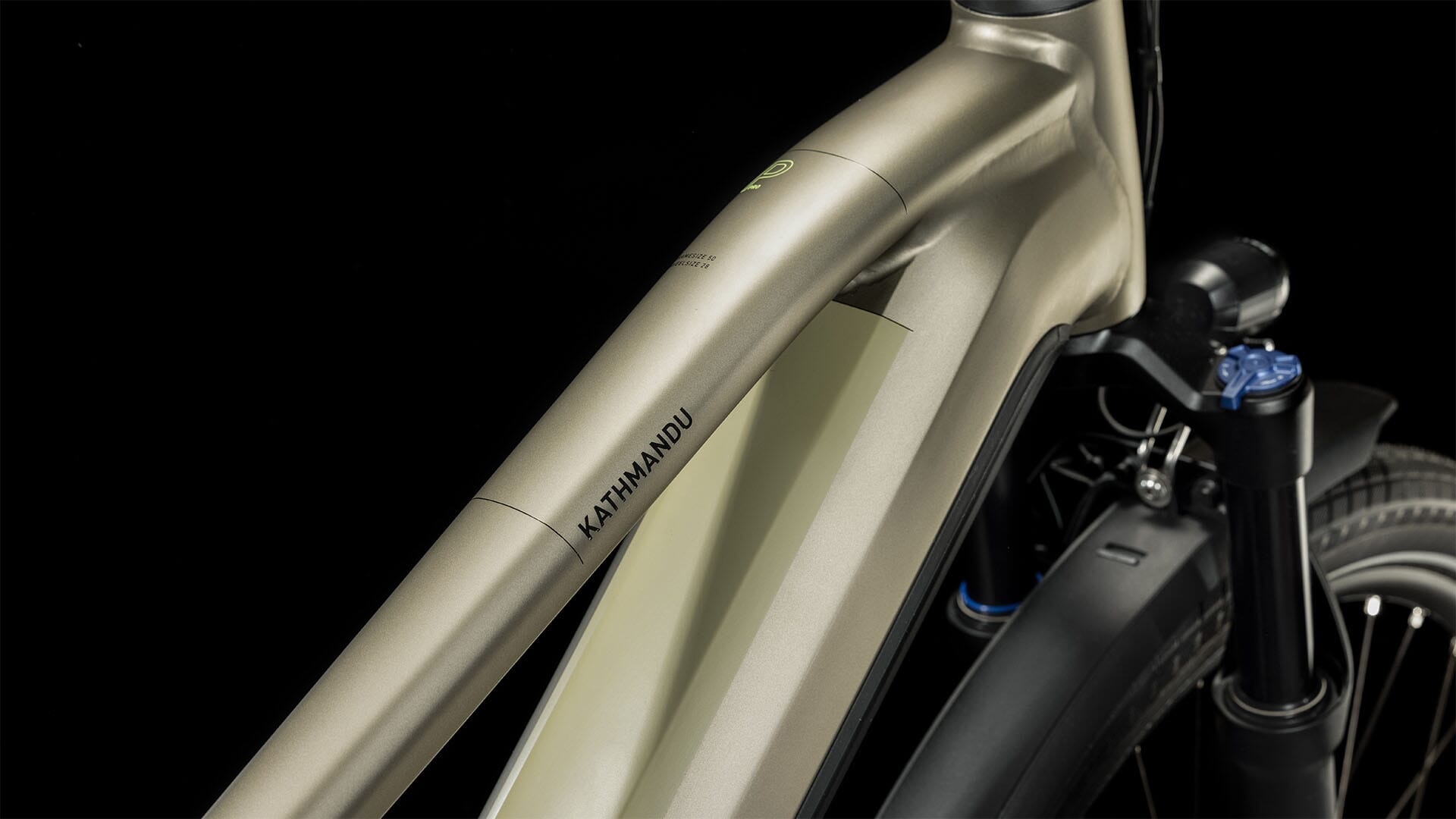

It's got the looks and comfort of a traditional Trapeze frame, but the Kathmandu Hybrid's understated appearance disguises a very cleverly thought out frame. For starters it incorporates a high-capacity Bosch battery for the best possible range. Efficient Comfort Geometry works exactly the way you'd expect it to, meaning you can pedal in comfort for miles and miles. And the Integrated Carrier 3.0 is super-strong and stable as well as being integrated with the rear mudguard for an elegantly understated look that you'll love. It's the perfect way to add accessories and carry whatever you need with you.

·         FRAME

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube (EE: Tapered Headtube)

·         SIZE

Trapeze: 50cm, 54cm

·         SUSPENSION FORK

X-Fusion MIG32 Air, Tapered, 15x110mm, 100mm, Lockout

·         BRAKE SYSTEM

Shimano BR-MT200, Hydr. Disc Brake (180/180)

·         REAR DERAILLEUR

Shimano Deore RD-M5100-SGS, 11-Speed

·         SHIFTERS

Shimano Deore SL-M5100, Rapidfire-Plus

·         CRANKSET

ACID E-Crank, 40T, 175mm (EE: 170mm)

·         CASSETTE

Shimano Deore CS-M5100, 11-51T

·         CHAIN

KMC X11

·         FRONT HUB

Shimano HB-MT400-B, 15mm, Boost, Centerlock

·         REAR HUB

Shimano FH-MT400-B, 12mm, Boost, Centerlock

·         RIMS

CUBE EX23, 36H, Disc, Tubeless Ready

·         TYRES

Schwalbe Big Ben, Performance, K-Guard, 55-622

·         STEM

CUBE Comfort Stem Pro, 31.8mm, Adjustable

·         HANDLEBAR

CUBE Comfort Trail Bar, 700mm

·         GRIPS

ACID Travel Comfort

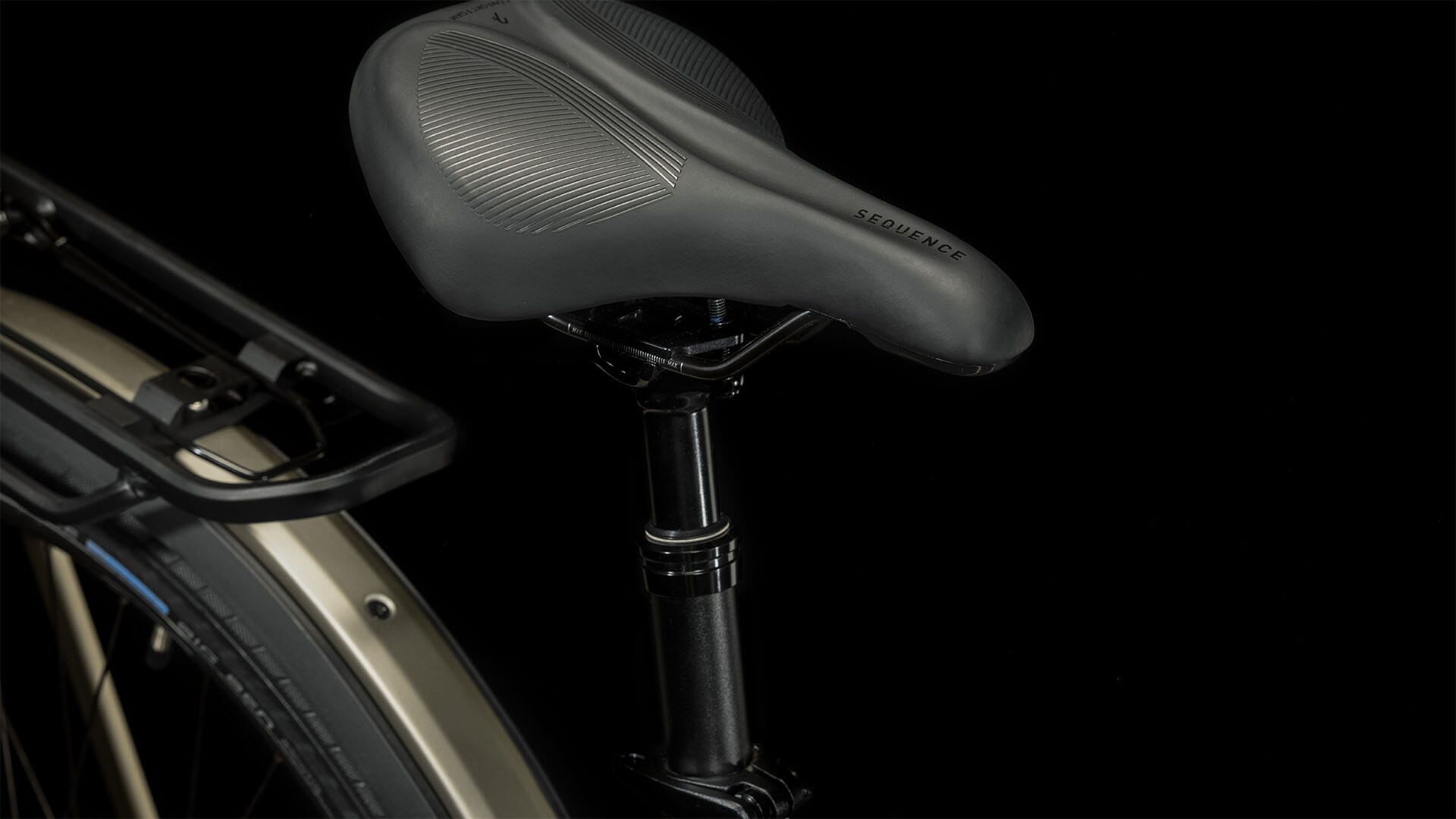

·         SEAT POST

CUBE Suspension Seatpost HD, 30.9mm

·         SADDLE

Natural Fit Sequence Comfort

·         HEADSET

M/Z: ACROS AZF-1035, ICR (Integrated Cable Routing), BlockLock 120°, Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm) // EE: ACROS AZX-1040, BlockLock 135°, Top Zero-Stack 1 1/8" (ZS 44mm), Bottom Zero-Stack 1 1/2" (ZS 56mm)

·         PEDALS

ACID PP Trekking

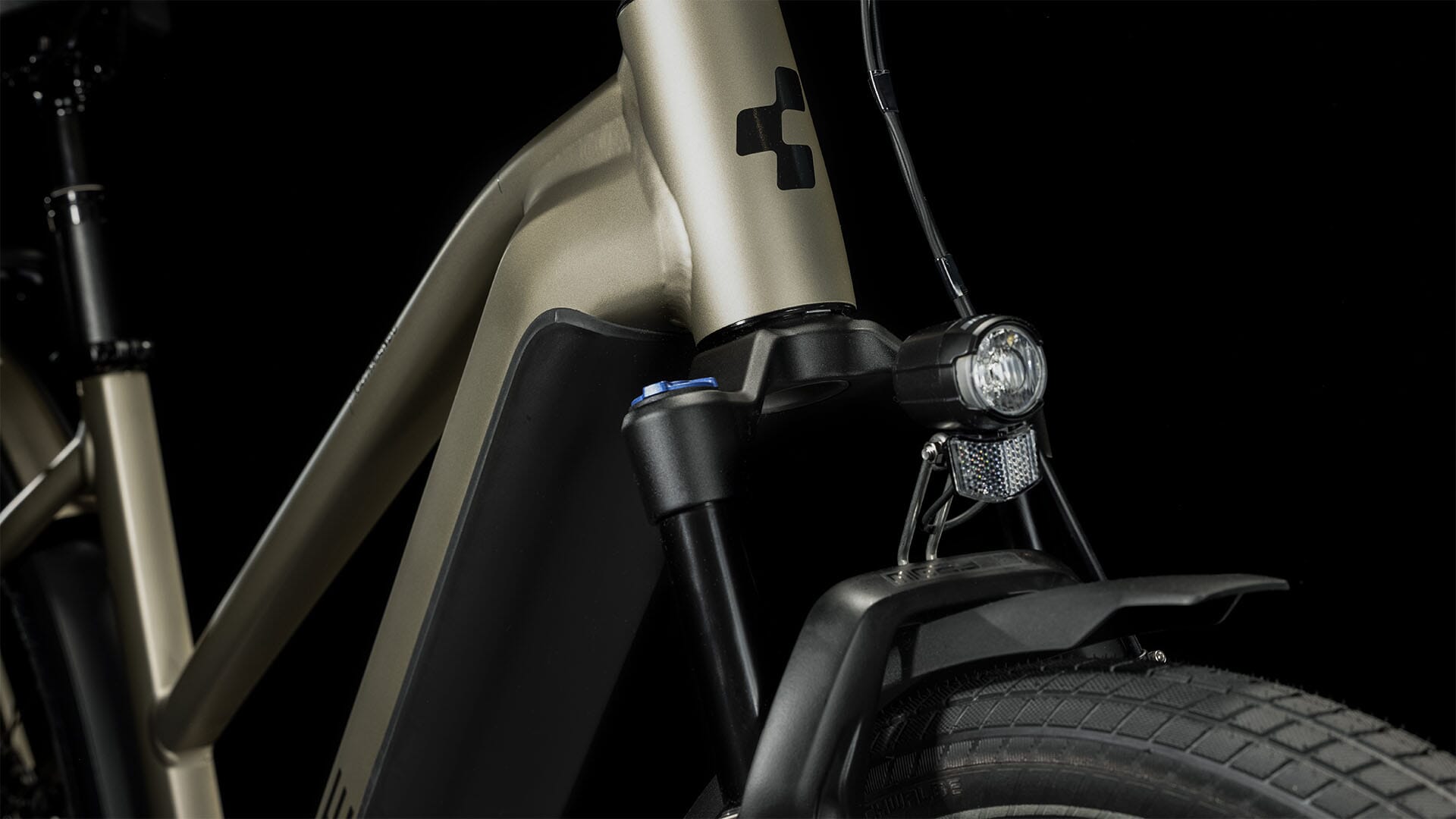

·         FRONT LIGHT

CUBE Shiny 50 Lux, 12V, DC

·         REAR LIGHT

ACID Mudguard Rear Light PRO-E, 12V, DC

·         KICKSTAND

ACID FM Pure Kickstand

·         MUDGUARDS

ACID 65 Integrated Carrier 3.0

·         BELL

Ring Bell

·         CARRIER

ACID Integrated Carrier 3.0, CUBE Adapter Compatible

·         WEIGHT

26,9 kg

·         COLOUR

flashstone´n´black

·         DRIVE UNIT

Bosch Drive Unit Performance CX Generation 4 (85Nm) Cruise (250Watt), Smart System

·         BATTERY

Bosch PowerTube 750

·         DISPLAY

Bosch Kiox 300

·         REMOTE

Bosch LED Remote

·         CHARGER

Bosch 2A
