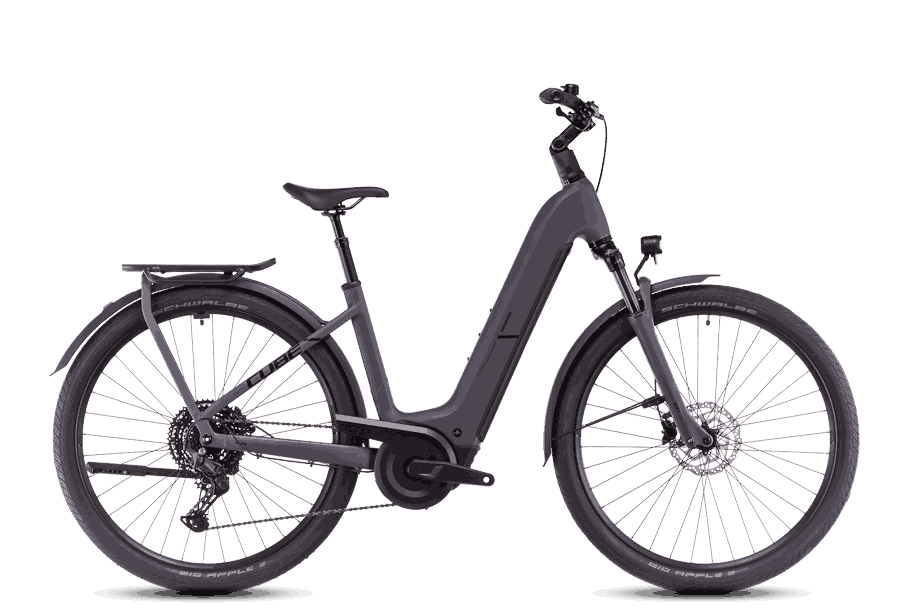

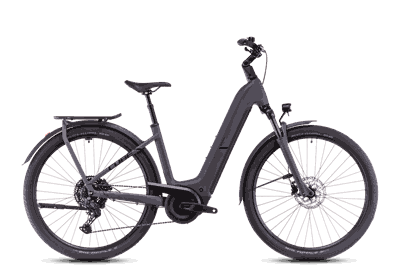

The CUBE Kathmandu Hybrid's design is classically elegant – familiar, even – but it's stuffed full of innovation and clever touches. The neatly housed Bosch CX drive and PowerTube battery are just the start. Efficient Comfort Geometry is designed around a 100mm travel suspension fork, for better control even when the going gets rough. Integrated cables complement the frame's clean lines and help reduce the need for maintenance, while a UDH dropout is tough, versatile and future-proof. And, of course, there's an integrated chainguard mount and our tough, sturdy and exceptionally neat Integrated Carrier 3.0, so you can carry everything you need for your adventures.

There are few better ways to experience the wider world than on two wheels, and now it's simpler than ever. With its powerful Bosch pedal assistance, PowerTube battery and elegant, practical CUBE design, the Kathmandu Hybrid ONE is ready to help you find new experiences.

The Kathmandu Hybrid ONE from CUBE brings the world outside your front door just that little bit closer. With the neatly integrated Bosch CX drive and PowerTube battery delivering up to 85 Nm of pedal assistance, we've taken the hard work out of exploring. Shimano's Cues 10-speed gears are easy to use, so you're always pedalling comfortably. Speaking of which, we fitted a Suntour air suspension fork, suspension seatpost and adjustable stem – all designed to make your life on the road easier. Powerful Shimano hydraulic disc brakes help keep you safe, whatever the weather is doing. And the strong, adaptable Integrated Carrier 3.0 and full complement of included accessories – including mudguards and lighting set – are all you need for pedal-powered adventure.

FRAME

·         FRAME

Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, 1.5 Headtube

·         SIZE

Easy Entry: 46cm, 50cm, 54cm, 58cm, 62cm

SUSPENSION

·         SUSPENSION FORK

SR Suntour NX1-32 LO Air, Tapered, 15x110mm, 100mm

E-BIKE SYSTEM

·         DRIVE UNIT

Bosch Drive Unit Performance Line CX, Smart System

·         REMOTE

Bosch Purion 200 with Integrated Display

·         BATTERY

Bosch PowerTube 600wh

·         CHARGER

Bosch 2A

DRIVETRAIN & BRAKES

·         BRAKE SYSTEM

Shimano BR-MT200, Hydr. Disc Brake (180/180)

·         REAR DERAILLEUR

Shimano Cues RD-U6000-GS, 10-Speed

·         SHIFTERS

Shimano Cues SL-U6000, Rapidfire-Plus

·         CRANKSET

ACID MTB Hybrid Pro

·         CASSETTE

Shimano Cues CS-LG300, 11-48T

·         CHAIN

KMC eGlide

COCKPIT

·         HEADSET

ACROS AZF-1035, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), HIC

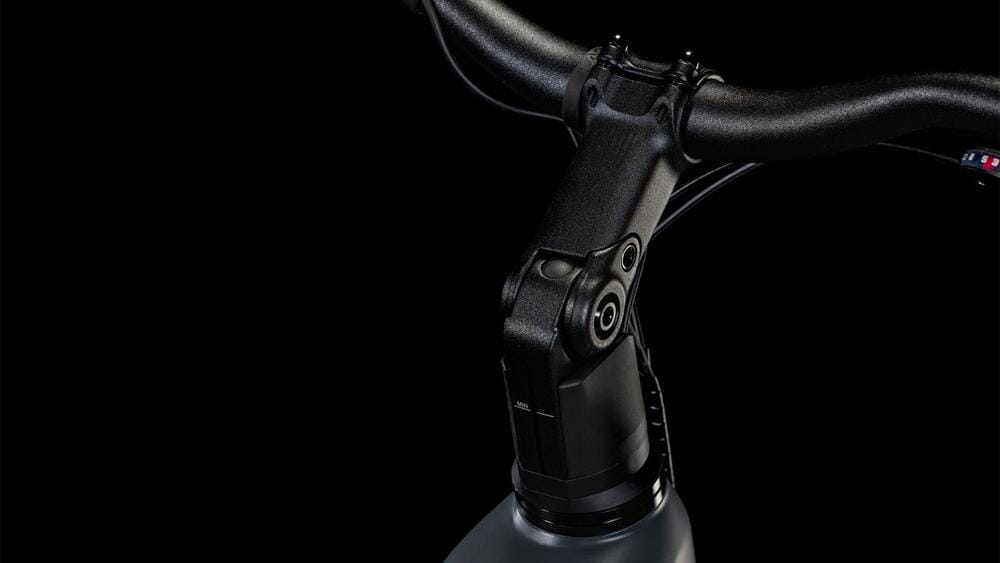

·         STEM

CUBE Comfort Stem Pro, 31.8mm, Adjustable

·         HANDLEBAR

CUBE Comfort Trail Bar, 700mm

·         GRIPS

ACID Travel Comfort

WHEELS

·         RIMS

CUBE EX25, 36H, Disc, Tubeless Ready

·         FRONT HUB

CUBE Engineered By Newmen, 15mm, Boost, Centerlock

·         REAR HUB

Shimano FH-MT400-B, 12mm, Boost, Centerlock

·         TYRES

Schwalbe Big Apple, Active, 55-622

FINISHING KIT

·         SADDLE

ACID Sequence Pro Plus

·         SEAT POST

CUBE Suspension Seatpost HD, 31.6mm

·         PEDALS

ACID PP MTB

·         FRONT LIGHT

ACID Front Light PRO-E 60 X-Connect, 12V, DC

·         REAR LIGHT

ACID Mudguard Rear Light PRO-E, 12V, DC

·         KICKSTAND

ACID FM Pure Kickstand

·         MUDGUARDS

ACID 65 Integrated Carrier 3.0

·         BELL

Easy Bell

·         CARRIER

ACID Integrated Carrier 3.0, CUBE Adapter Compatible

PRODUCT INFORMATION

·         COLOUR

shadowgrey´n´black

·         WEIGHT

28,5 kg
