ENGINEERED FOR

GOOD TIMES

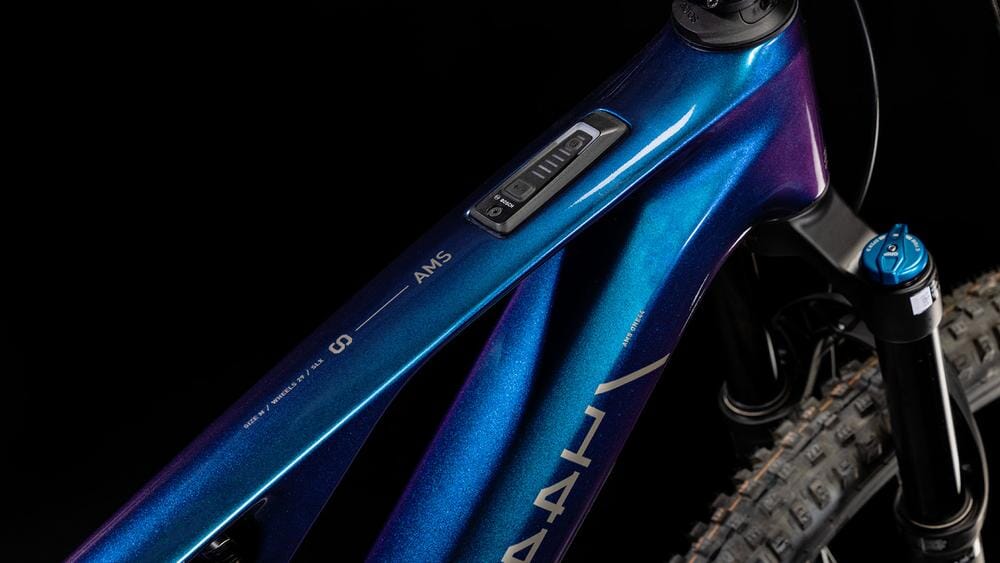

Building an ultralight Bosch-powered full-suspension bike isn't easy. That's why the AMS Hybrid ONE44 C:68X frame makes use of our most advanced C:68X® carbon material, for maximum possible strength and stiffness with the lowest possible weight. The 400Wh battery is incorporated into the down tube, as close to the new, lightweight Bosch SX motor as possible to improve handling, and the frame is PowerMore-ready for a 250Wh range boost with the optional battery pack. Internal cable routing complements the frame's sleek silhouette and there's a lightweight direct mount chain guide. With a UDH gear hanger and angle adjustable headset so you can tweak the handling to suit your riding style, it's got everything you need for fast-paced trail riding.

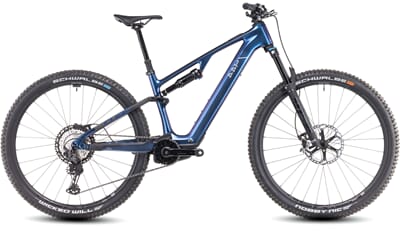

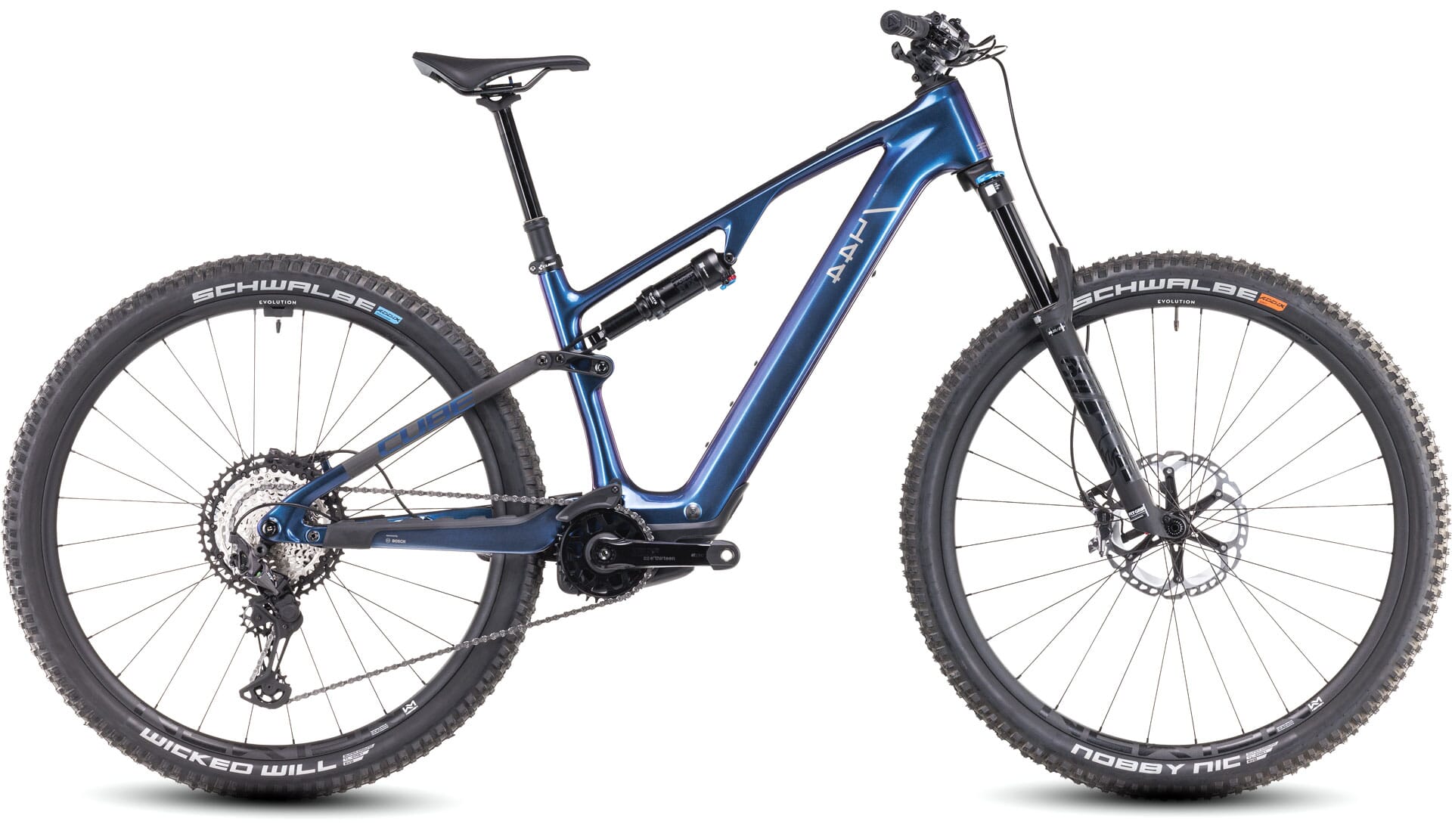

Trail riding with an extra boost from Bosch's new SX motor. That's what the AMS Hybrid ONE44 C:68X SLX delivers, in an ultralight carbon-framed package crafted from our premium C:68X® material. With Shimano XT gearing and Fox Performance shock, it's your trail wingman.

A bit of Bosch boost – up to 55Nm – in an ultralight package. That's the aim of the AMS Hybrid ONE44 C:68X SLX's game, and it's extremely good at it. With the new lightweight Bosch SX drive unit, 400Wh battery, controller built into the top tube and a handlebar-mounted Mini Remote, trail riding never looked so appealing. Shimano's super-reliable XT 1x12 gears serve up a mountain-taming range of ratios, while matching XT hydraulic disc brakes ensure you're safe and in control coming back down the other side. We chose Fox's 34 Performance Grip fork and Float Performance shock for their matchless ability to smooth the trail. And a pair of Newmen Evolution SL A.30 wheels, wrapped in Wicked Will and Nobby Nic 2.4in tyres, keep you powering forward toward the horizon.

FRAME

·         FRAME

C:68X® Monocoque Advanced Twin Mold Technology, Effiecient Trail Control, FSP 4-Link, Agile Trail Geometry, Boost 148, UDH™, Fixed Integrated Battery, Advanced Internal Cable Routing

·         SIZE

S, M, L, XL

SUSPENSION

·         SUSPENSION FORK

Fox 34 Float Performance GRIP, 3-Position w/ Micro Adjust, Tapered, 15x110mm, 140mm

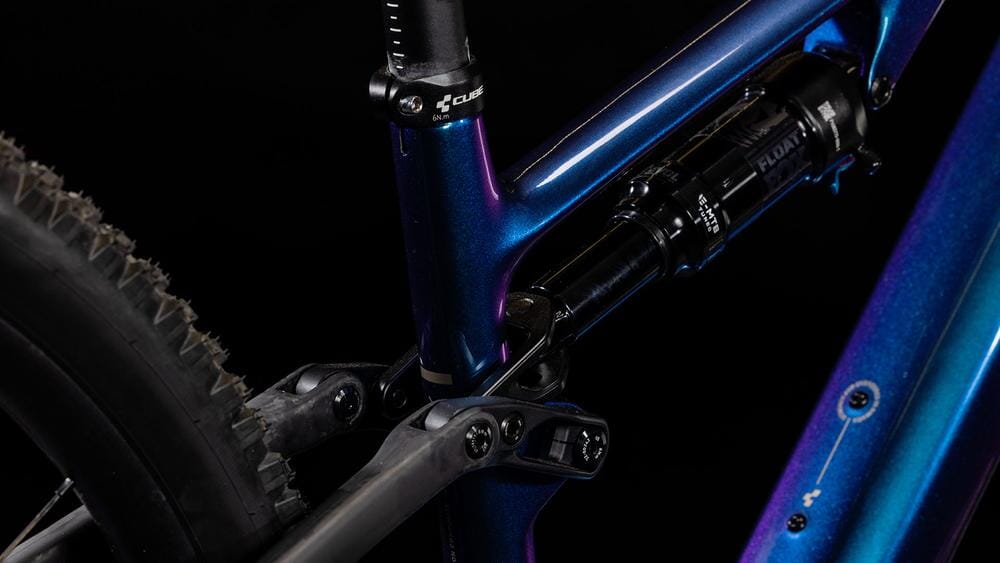

·         SHOCK

Fox Float Performance, 210x55mm, Adjustable LSR w/ 2-Pos. Lever

·         SHOCK HARDWARE

Front: 30x8mm, Rear: DU-Bushing 12,7mm

E-BIKE SYSTEM

·         DRIVE UNIT

Bosch Drive Unit Performance SX (55Nm) Cruise (250 Watt), Smart System

·         REMOTE

Bosch System Control, incl. Mini Remote

·         BATTERY

Bosch CompactTube 400

·         CHARGER

Bosch 4A

DRIVETRAIN & BRAKES

·         BRAKE SYSTEM

Shimano XT BR-M8120/BR-M8100, Hydr. Disc Brake (203/180)

·         REAR DERAILLEUR

Shimano XT RD-M8100-SGS, ShadowPlus, 12-Speed

·         SHIFTERS

Shimano XT SL-M8100-IR, Direct Attach

·         CRANKSET

e*thirteen Helix Race Alloy e*spec Crank, 32T

·         CASSETTE

Shimano XT CS-M8100, 10-51T

·         CHAIN

Shimano CN-M8100

·         CHAIN GUIDE

Reverse Flip-Guide E-Chain Guide, Direct Mount, I-Plate

COCKPIT

·         HEADSET

ACROS AZF-675, ICR (Integrated Cable Routing), Top Zero-Stack 1 1/2" (ZS 56mm), Bottom Zero-Stack 1 1/2" (ZS 56mm), Fiber Inserts for Angle Adjustment

·         STEM

Newmen Evolution SL 318.4, 31.8mm

·         HANDLEBAR

Newmen Advanced 318.25, Carbon, 780mm

·         GRIPS

ACID Disrupt, Soft Compound

WHEELS

·         WHEELSET

Newmen Evolution SL E.G. 30, 28/28 Spokes, 15x110mm/12x148mm, Tubeless Ready

·         FRONT TYRE

Schwalbe Nobby Nic, Super Ground, Addix Soft, Kevlar, 2.4

·         REAR TYRE

Schwalbe Wicked Will, Super Ground, Addix Speedgrip, Kevlar, 2.4

FINISHING KIT

·         SADDLE

Natural Fit Nuance SL

·         SEAT POST

CUBE Dropper Post, Handlebar Lever, Internal Cable Routing, 31.6mm

PRODUCT INFORMATION

·         COLOUR

deepcobalt´n´black

·         WEIGHT

17,3 kg
