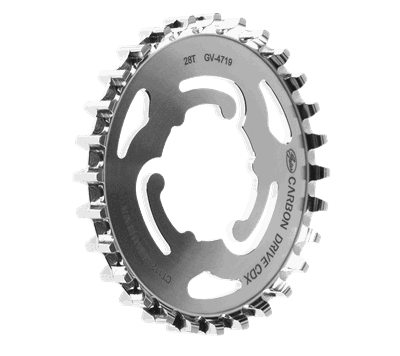

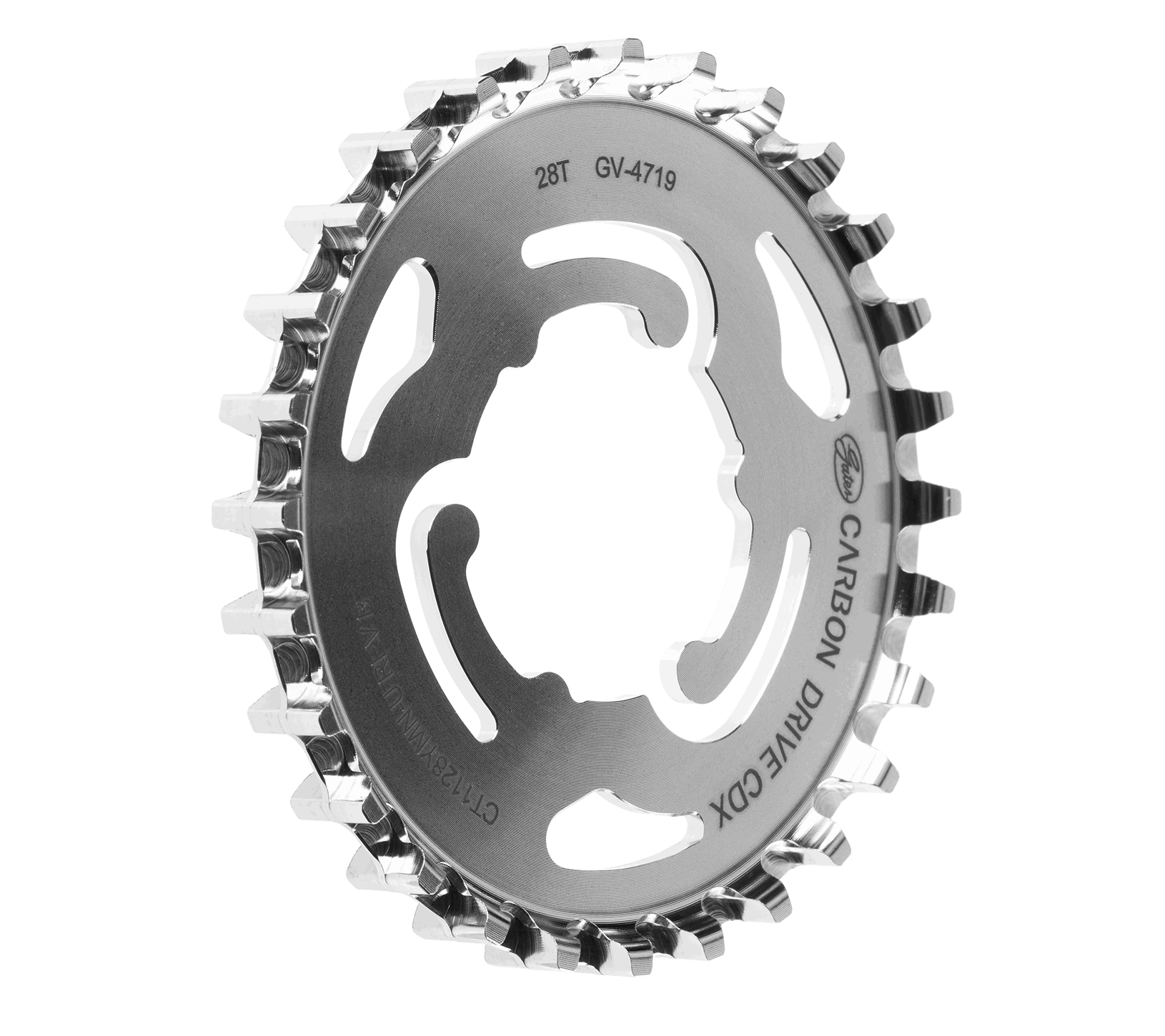

PRODUCT INFORMATION "CDX REAR SPROCKET, 28T, SHIMANO NEXUS 5 MECH. HUB"
particularly wear-resistant and lightweight aerospace stainless steel
innovative tooth profile for optimum performance and durability
designed for maximum service life
ideal for daily use, e-bikes or trekking, optimal function even under the most stressful conditions
open tooth profile (Mudports) for trouble-free operation even in adverse conditions such as snow or mud
receptacle for all common hub gears as well as Shimano IGH hubs (9 Spline)
weight-optimized, cutting-edge design
Center Track design with central guide flange prevents the belt from running off
11mm pitch
For technical dimensions see PDF.
Nexus 5 hubs have a larger mounting diameter than Nexus 7 and Nexus 8 hubs. Nexus 5 sprockets and are therefore not compatible with these.
When properly installed, the labeling on the sprocket must be legible from the outside.
Please note Gates mounting instructions.

Specifications
Article Group Rear Sprockets
Intended use City, MTB, Trekking / Gravel
System CDX
Interface Nexus 5 Mech. Nabe
Beltline 45,5mm
Tooth count 28
Material stainless Steel
Color silver
Pitch 11mm
